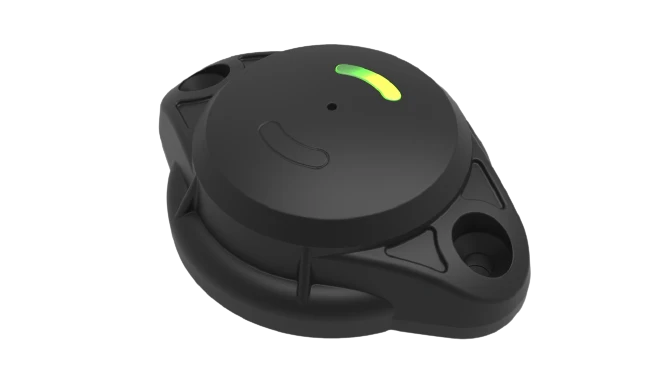

Available for ImportMYTAB-1 Cargo Condition Monitoring Sensor for Transport and Storage
Manufacturer:LIV LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The sensor is designed to monitor the conditions of transport of goods requiring mode transport, as well as positioning and control of conditions in storage areas. MYTAB-1 captures and stores cargo events/states. All received data is transmitted to a mobile device via Bluetooth Low Energy.
Specifications
Accelerometer
4g
Hall sensor
4,8 mT
Light sensor
3...70000
Temperature sensor
-40...85 °C
Moisture sensor
Accuracy 2%
Motion
Armoured glass
Удар
Armoured glass
Magnetic influence
Armoured glass
Turning
Armoured glass
Sensitivity
-93 dBm
Operating frequency range
2,402-2,480 MHz
Function of data transmission to an external telematic terminal
Yes, via Bluetooth
NFC
Armoured glass
Bluetooth
Version 4.2, range 10 m
Battery capacity
220 mAh
Battery life
From 1 year depending on settings
Battery type
Replaceable not rechargeable
Battery model
CR2032
Power supply voltage
3 V
Number of recordings
Up to 60 000
Internal memory
1MB
Humidity
0-100%
Operating temperature
-40+85 ?
Degree of enclosure protection
IP-65
Dimensions
47x35x13 mm
Weight
30 year
Attachment to cargo
By means of self-tapping screws and ties.
Material
ABS
Color
Black
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
