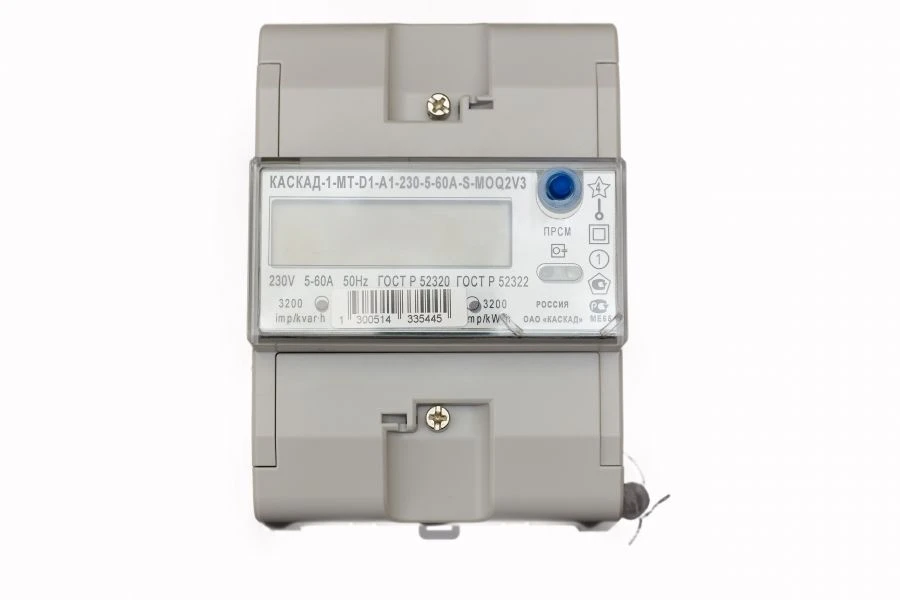

Multifunctional Single-Phase Energy Meter "KASKAD-12-MT" D1 for Efficient Energy Monitoring
Manufacturer:
CASCADE OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Single-phase multifunctional electricity meters "KASKAD 12 MT-D1" are designed to measure active and reactive (or only active) electricity of direct and reverse (or only direct) direction at differentiated tariffs in time in single-phase AC networks of industrial frequency.
Specifications
Communication interfaces
RS485; RF433; GSM
Data transfer protocols
MIRTEK / DLMS/COSEM / SPODAS
Additional features
Indicator backlighting, magnetic field sensor, current load control relay, mains quality measurement, opto-port, discrete output, electronic seals on housing and terminal cover.
Nominal voltage
230 V
Rated current
5 A
Mounting method
DIN rail
Maximum current
80 A
Maximum operating temperature
70 °C
Minimum operating temperature
-40 °C
Type of metered energy
Active and reactive
Type of readout device
LCD
Number of phases
1
Type
Multi-tariff
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
