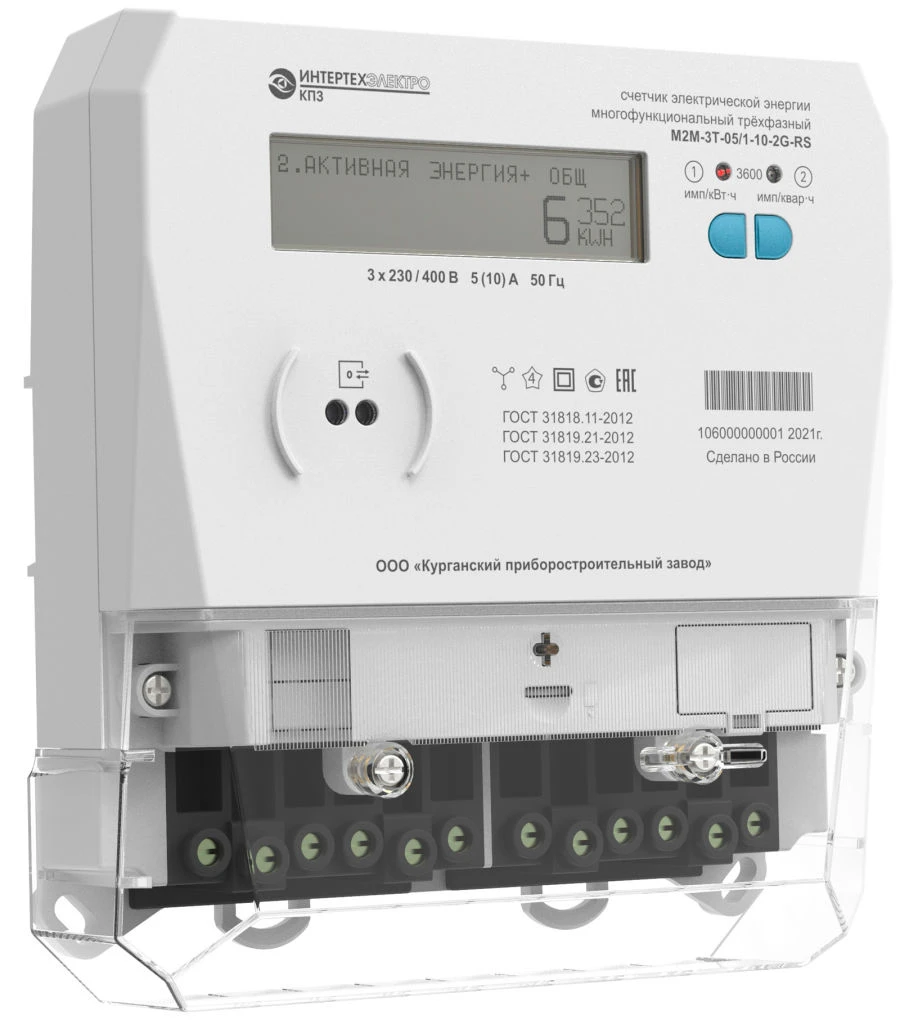

Multifunctional Three-Phase Energy Meter M2M-3T for Accurate Energy Measurement

Electricity Meters

Manufacturer: KPZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Multifunctional three-phase electricity meter M2M-3 is designed for bidirectional multi-tariff metering of active and reactive electrical energy and power in three-phase three- or four-wire AC networks when included in the network through current transformers. It can be used both autonomously and as part of automated information and measurement systems for electricity metering under the SPODES protocol (IEC62056 DLMS/COSEM). Field of application: enterprises of power engineering, industry, agriculture and housing and communal services.

The purpose of transformer PU M2M is metering of EE on the low side of 0.4 kV when common (high) currents flow. It is suitable for metering in apartment buildings and private sector as a common metering device. Also installed in the TP for common metering on the feeder.

Specifications

Rated current

5 A

Maximum current

10 A

Minimum operating temperature

-50 °C

Maximum operating temperature

70 °C

Type

Multi-tariff

Number of phases

Dimensions, DxWxH, mm, not more

195x175x62

Mounting type

DIN rail or screws

Weight

0.9 kg

Backup communication channel

RS-485; Bluetooth Low Energy (BLE); none*

Main communication channel

2G (GPRS)

Type of metered energy

Active and reactive

Rated line voltage

400 V

Accuracy class for reactive energy

1,0

Nominal phase voltage

230 V

Accuracy class for active energy

0,5S

Degree of protection against penetration of solid objects and water according to GOST 14254-2015

IP51

Operating voltage range

184...265 V

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
