Ultrasonic Wheel Scanning Device USK-5TM for Reliable Railway Inspections

Advanced Measurement Equipment

Manufacturer: TECHNOVOTUM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

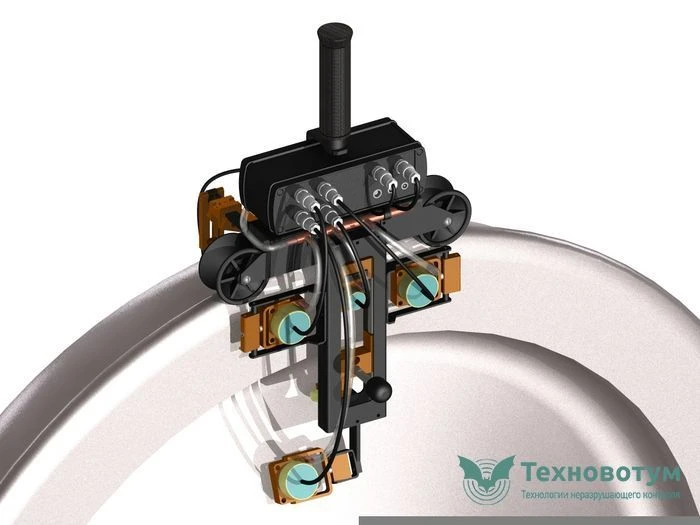

Scanning device USK-5TM is designed for ultrasonic inspection of solid rolled wheels of freight and passenger wagons. It is used in wheel shops of wagon depots after rolling out of wheelsets, their installation on the stand for inspection and certification. USK-5TM can work only together with Tomographik 5M flaw detector.

Specifications

Average service life, at least

5 year

MTBF, max.

1600

Weight (excluding contact liquid), not more

3.8 kg

Overall dimensions of the device (length x width x height), max.

230 mm

Controlled zones, defects

Cracks in the area of the groove transition of the wheel disc to the rim

Permissible thickness of the controlled wheel rim, not less than

20 mm

Monitoring facility

Solid rolled wheels of wheel sets of freight and passenger wagons

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing
