Multifunctional control panel MFPU-1

Signal & Indicator Panels

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

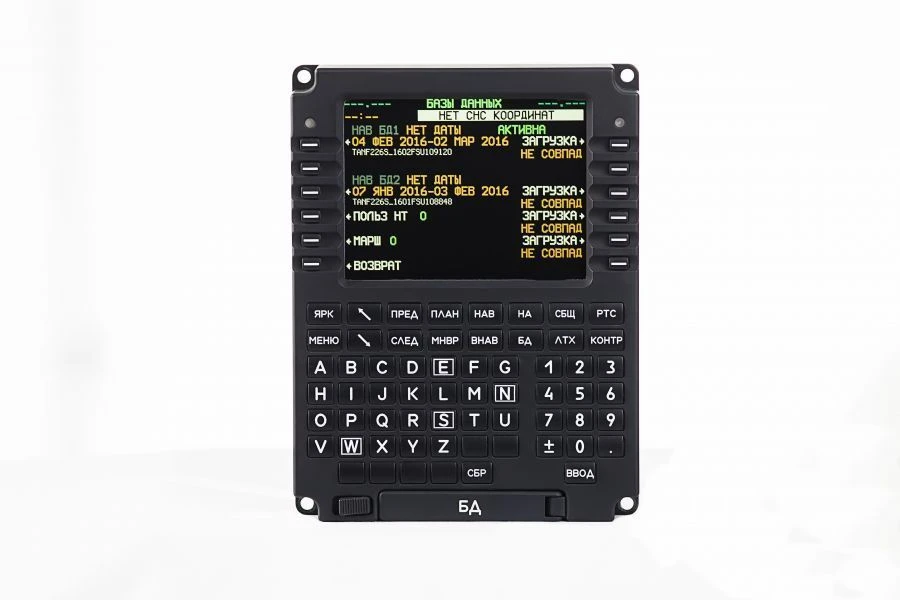

MFPU-1 is designed both for independent use and as part of the complexes of on-board equipment of aeroplanes and helicopters. MFPU-1 implements the tasks of the computational aircraft system, namely: determining the
coordinates according to SNA, solution of navigation tasks, work with aeronautical database, work with flight routes, control of interfacing equipment, solution of flight optimisation tasks.

Technical Specifications

Operating temperature	-40...55 °C
Ready time	2.5 min at "cold" start of satellite receiver. 1.5 min at "warm" start of the satellite transponder
Weight	2 kg
Continuous operation time	at least 24 h
Overall dimensions	146 × 192 × 86,7 mm
Power supply	27 V, 40 W (60 W with heating on)
Temperature limit	-60...85
Resistance to WWF	KT-160D VVF (V4/A4)HVAV[SGU/(BA)(B1A)]XXXDFSZAAZZ[RR]M[XXXXX]XXX
Built-in storage	CF 2 GB
Built-in SNS	GLONASS/GPS
Interfaces	-ARINC 429: 12 inputs / 6 outputs ARINC 646 (Ethernet): 1 channel - ARINC 743A (1PPS): 1 input / 1 output - RS 232 / RS 422: 1 channel / 1 channel - RK: 10 inputs / 8 outputs - ~5 V, 400 Hz: 1 input - IDE (1 channel)
Display characteristics	- Screen size: 5" - Matrix resolution: 640×480 pixels - Brightness: Not less than 680 cd/m2 Contrast: 800:1 Viewing angles: ±60° horizontally, ±60° vertically.
Controls	16 function buttons,12 unnamed, 46 alphanumeric buttons

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
