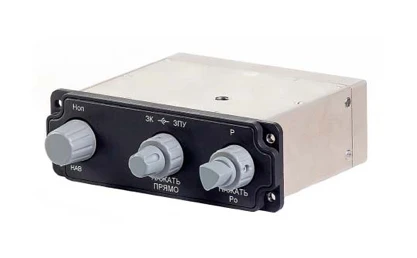

Navigation control panel TDC-17-N

Signal & Indicator Panels

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The control panel is used to set the following navigation parameters:
- reference altitude;
- barocorrection value;
- heading angle;
- heading.

Technical Specifications

Failure rates	- Average MTBF in flight: at least 10,000 hrs - Average MTBF and damage: at least 5,000 hrs
Dimensions	146×48×154,3 mm
Equipment	TDS-17N remote control can be equipped with white or green illumination (with possibility of adaptation for night vision goggles) and engraving in English or Russian languages.Taking into account horizontal or vertical positioning of the remote control, en
Weight	0.7 kg
Information exchange channels	- ARINC 429 (2 inputs / 1 output) RS 232 (process channel) - RC (4 inputs / 3 outputs)
WSF categories according to KT-160D	KT/160D WVF. [V4/A4]HVAV[GU/(BA) (B1A)]XXXDFSZAAZZ[RR]M[A2C22]XXA
Operating temperature range	-40...55 °C
Electricity supply	18...31.5 V
Continuous operation time	at least 15 h
Standby time after power on or power failure	no more than 2 seconds
Power consumed from the power supply network 27 V	No more than 8 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
