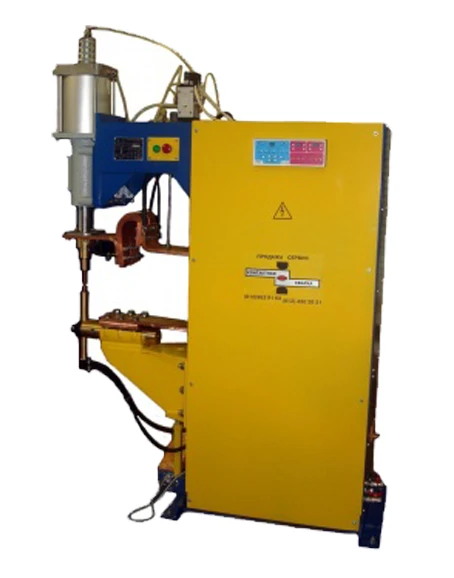

MT-3001L Contact Spot Welding Machine for Efficient Low Carbon Steel Welding

Electric Welding Machines

Manufacturer: KSLIM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Machine contact spot welding MT-3001L UHL4 is used for AC welding of parts made of low-carbon steels. Parts intended for welding must be free of oxide films and contaminants that prevent welding. The MT-3001L machine should be operated in closed premises at an altitude of not more than 1000m above sea level at the temperature of cooling water from plus 5°C to plus 25°C. The machine is manufactured in UHL4 version for operation in areas of temperate climate at ambient air temperature from plus 1°C to plus 35°C with relative humidity not more than 80% at temperature plus 25°C. Kind of welding current - variable; Drive welding force - pneumatic; Nominal compression force of 1500 daN; Control system - welding controller on a choice; Welded thicknesses: Low carbon steel - from 1,0+1,0 to 7,0+7,0; Rebar class A400C, A500C - from 6,0+6,0 to 25,0+25,0

Specifications

Type of product according to PP RF 616

Machine for resistance spot welding

Power

180 kW

Minimum welding current

3000 A

Rated welding current

20000 A

Technical capacity, cycle/min

220

Dimensions

1500*800*2300 mm

AC mains supply voltage

380 V

Weight

1000 kg

Mark

MT-3001L

Type of welding current

Variable

Frequency of supply voltage

SBVVBG

Length

1500 mm

Width

800 mm

Height

2300 mm

Modes of operation

Impulse

Mains frequency

SBVVBG

Type of welding voltage regulation

step/phase

Load Duration (LL)

SBVVBG %

Equipment

RX-901L

No-load voltage

6...9 V

Required mains voltage

380 V

Type

resistance spot welding machine

Mains voltage at 50 Hz

380 V

Highest secondary current

14000 A

Power at SP=50%

160

Nominal electrode compression force

15000

Nominal solution

240 mm

Stroke of the upper electrode

100 mm

Maximum welding current

30000 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
