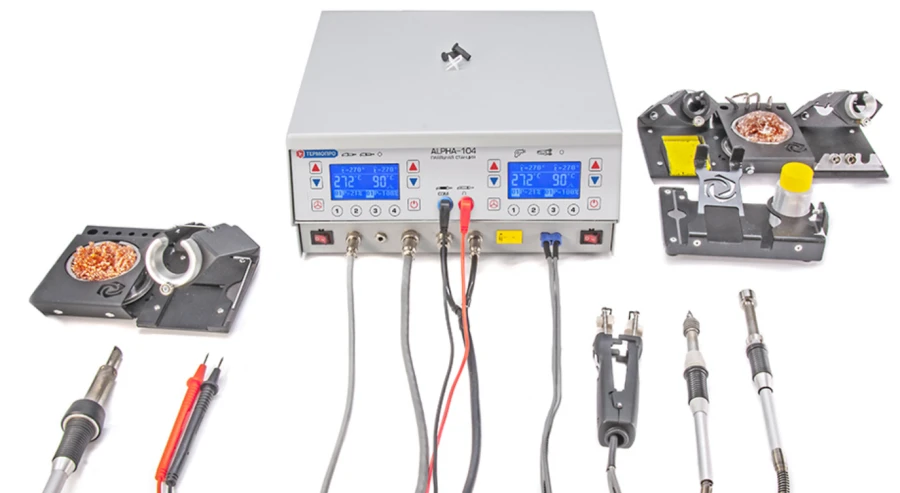

Multifunctional Soldering Center ALPHA-104 ITF for PCB Soldering and Wire Testing

Electric Welding Machines

Manufacturer: TECHNO-ALLIANCE ELECTRONICS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Purpose: MFC ALFA-104 ITF: Soldering of printed circuit boards, soldering of connectors. Checking the soldering of harness circuits by the method of "piercing". Thermal stripping of wire insulation. Checking and calibrating the temperature of the soldering iron stinger. Hot air soldering and heat shrinking sleeves. Tinning of wires.

Specifications

Type of product according to PP RF 616

Soldering equipment

Accuracy of maintaining the temperature of the soldering iron heater

1.5 °C

Automatic adjustment of the working power of the soldering tool

0...100 %

Operating temperature range of soldering iron

0...450 °C

ESD

Conformance to ESD requirements for unit protection

Interface

On Russian

Additional grounding

Screw clamp M4

LCD display of soldering station control unit

High contrast

Встроенный фильтр

For protection against interference in the power supply network of the soldering station control unit

Equipotential soldering connector

On soldering station control box

Soldering station control unit temperature and power regulator

Microprocessor

Working instruments:

Soldering iron -100 (100 W), soldering iron -200 (200 W), miniature thermofan (100 W, air flow rate up to 15 l/min), probes for testing circuits, optional thermocouple (type: temperature control of the object or soldering iron sting), plug-in thermo knives

Power of thermo knife/burner

70 W

Electric knife supply voltage

2.6 V

Power of shrinking hair dryer

120 W

Adjustable thermofan airflow

Measuring range of the resistance of the channel test leads

1...500 ohm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
