Mounting frame 19"/2

Computer Parts Modules

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

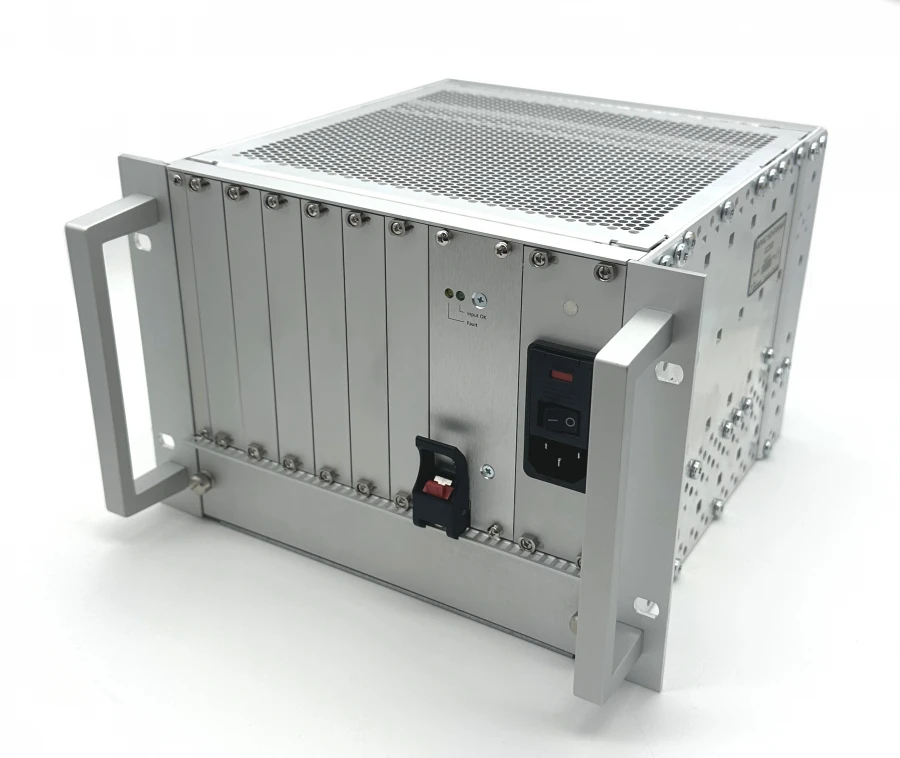

Mounting frame 19"/2 IMES.469531.002 (hereinafter referred to as the product) is a basic computer platform for CompactPCI Serial modules, allowing to install various processor modules and expansion modules, as well as to manufacture customised versions.
The product shall provide:
- the ability to install five 3U format modules according to the CPCI Serial convective specification;
- power supply of the installed modules with 5 V and 12 V voltages according to CPCI Serial standard;
- active cooling of the system by bottom-up air flow.
The product is intended for use as a component part in computing systems based on the CPCI Serial specification.

Technical Specifications

Product composition	Euromechanics 4U rack-mounted enclosure 19"/2; 3U/8HP power supply unit - 1 pc; fan unit - 1 pc; backplane: 5 3U CPCI-S slots, FullMesh - 1 pc.
Power supply	number of output voltages: 2 (+5V and +12V); voltage: 5V, current: 2.5A; voltage: 12V, current: 25A.
Backplane	Main functional and mechanical characteristics correspond to CPCI Serial specification; Ethernet interfaces wiring - FullMesh; possibility of RIO modules connection is absent; number of slots - 5 pcs. according to CPCI Serial specification; slot for instal
Fan unit	number of fans - 2 pcs; supply voltage +12 V; rotation speed 2700 rpm; power consumption 2,2 W; nominal air flow 82 m3/hour.
Operating temperature range	minus 20 to plus 70 ºC
Power supply voltage	220 V ± 10 % AC, mains frequency 50 - 60 Hz
Power consumption	Not more than 300 W
Overall dimensions of the product, mm, not more	269,60 x 284,70 x 177,40
Product weight	No more than 5 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
