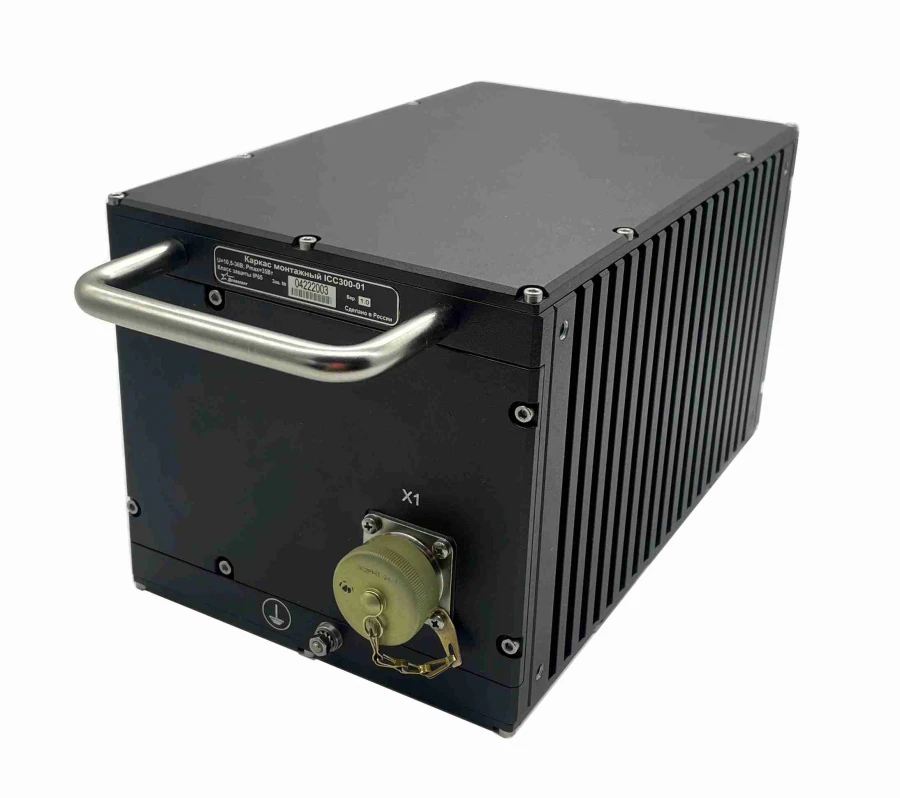

ICC300 assembly frame

Computer Parts Modules

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

ICC300 is a basic computer platform for modules in PC/104+ form factor with the possibility of conductive heat dissipation on the case from each module, allowing to install additional expansion modules and to make customised versions.

Technical Specifications

Functionality	Ability to install up to seven PC/104, PC/104-Express and StackPC expansion modules; Ability to develop ruggedised computers on its basis; Ability to implement conductive heat dissipation in the case
Modules included in ICC300	PS351-02 - power supply module; MF02 - filter module
Filter module MF02 characteristics	Input supply voltage 11-36V; Maximum current 8A
Power supply PS351-02 characteristics	Input supply voltage 11 to 36 V DC; Galvanic isolation input/output: 1000 V. Output voltages/currents (power): +12 V / 1.66 A (20 W); +5 V / 6 A (30 W); +3.3 V / 1.5 A (5 W). Overload and overheating protection
Consumption current	Not more than 160 mA (excluding power supply of external circuits)
Resistance to mechanical influences	Exposure to sinusoidal vibrations for frequencies from 10 to 500 Hz with acceleration of 5 g; Exposure to single shocks with peak acceleration of 100 g; Exposure to repeated shocks with peak acceleration of 50 g, number of shocks equal to 1000.
Product weight	No more than 5 kg
Overall dimensions, mm, not more	311x163x153

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
