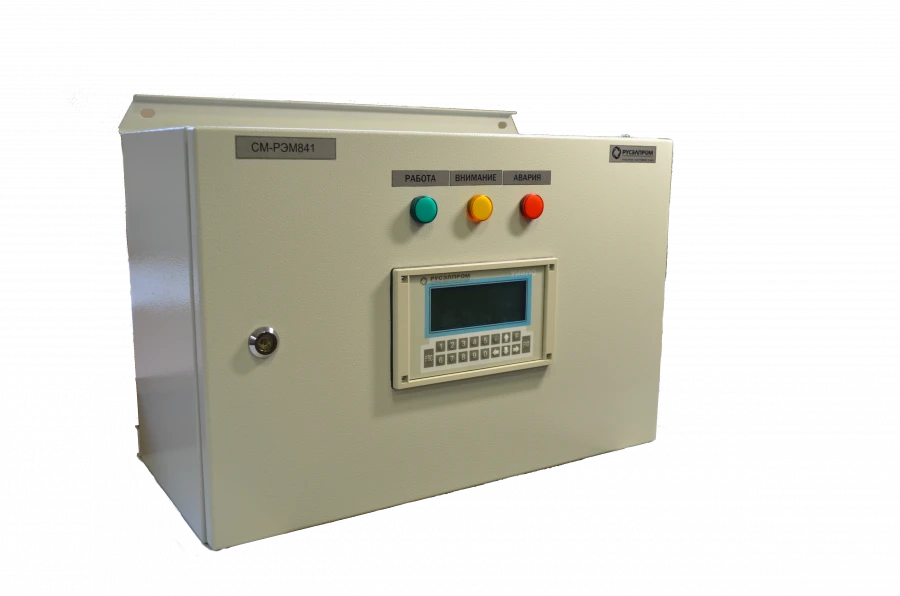

Monitoring system SM-REM841

Analytical Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The SM-REM841 monitoring system is designed for continuous automatic control of parameters of the electrical machine and its associated systems, checking whether these parameters are within the established norms with the issuance of appropriate signals and messages when the parameters exceed the established norms. The monitoring system SM-REM841 provides monitoring of the electric machine, archives the control results and performs a number of service operational functions.

Specifications

Height 486 mm

Width 600 mm

Depth 248 mm

Operating conditions 1. Ambient air temperature from plus 1°C to plus 40°C; 2. Altitude above sea level not more than 1000 m; 3. Environment non-explosively safe, containing no conductive dust, chemically aggressive vapours and gases in concentrations that reduce the level of

Group of operating conditions according to GOST 30961-99 ?6

Degree of protection of the shell according to GOST 14524-2015 IP56 (on front operator panel)

Number of physical channels for connection of three-wire or four-wire temperature control sensors 24 pc

Number of physical channels for connection of sensors for vibration velocity monitoring with analogue signal 4 - 20 mA 8 pc

Number of inputs for connection of speed sensors 2 pc

Number of signal relay outputs 8 pc

Support interface for communication with higher level systems ModBus TCP

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
