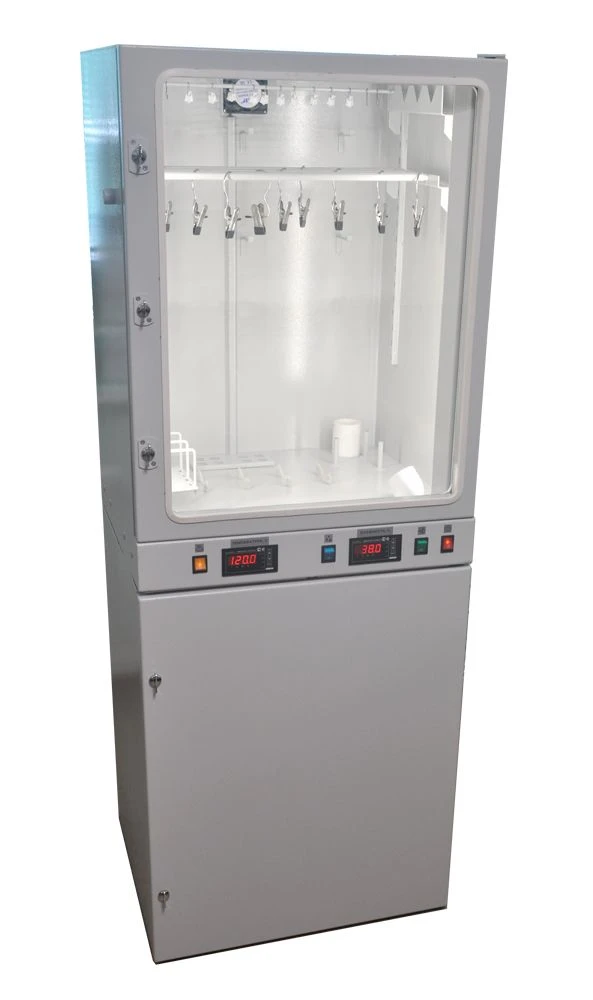

Large cyanoacrylate chamber

Large cyanoacrylate camera (hereinafter referred to as the camera) is designed to detect invisible traces on various objects - trace carriers using cyanoacrylates.
The design of the chamber includes:
- cyanoacrylate glue heating system with the possibility of setting the heating temperature from 20 to 120°C and automatic maintenance of the set temperature value;
- system of air humidification up to the value of not less than 80% and automatic maintenance of the set value of humidity;
- a fan for creating conditions of uniform fumigation in the internal volume of the chamber;
- double air purification system containing an air blower, water and carbon filters.
Detection of hidden traces by means of fumigation with cyanoacrylate vapours is carried out in a closed volume of the chamber in conditions of control of cyanoacrylate glue heating temperature and air humidity, at normal atmospheric pressure (without vacuum).
The chamber consists of two parts: an evaporation chamber and a pedestal.
