MIRage-NPT resistance thermocouple signal input devices

Data Processing Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

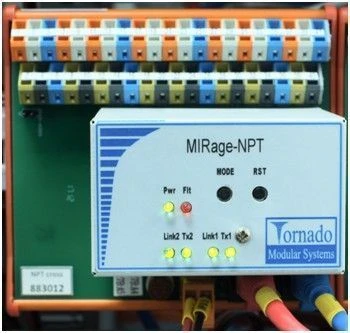

The MIRage-NPT devices are designed to measure temperatures using resistance thermocouples (RTDs) of different graduations and transmit the measured values via a redundant digital interface Ethernet 10/100 over twisted pair using ModBus protocol. The MIRage-NPT devices have 8 measuring channels (IRs). There are four connection terminals for each IC - two terminals for the measured voltage input, one current output contact, one common contact. During measurement, the input voltages from the ICs are multiplexed into a single signal for the analogue to digital converter (ADC) and the common current source is multiplexed to the current output for that channel.
MIRage-NPT devices are designed to create automated process control systems.
MIRage-NPT devices use the central processor K1986BE92QI, manufactured in the Russian Federation.

Technical Specifications

Base frequency of the processor	0.1
Architecture	autonomous distributed I/O with redundant ethernet communication
External connectors	2 RJ-45; +24V power supply; spring terminals for signal cable
Form factor	din-35 rail mount
Power Type	+24V DC
Consumption current, mA	95
Data transfer rate	100
Type of measuring channels	resistance thermocouple signals
Weight	400 g
Dimensions width	114 mm
Galvanic insulation	Group
Power consumption	2.5 W
Data exchange protocol	Modbus UDP/TCP Slave
Polling time	2
Number of measuring channels	8 pc
Height	108 mm
Number of processor cores	1 pc

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
