Processor module CPB905

Data Processing Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

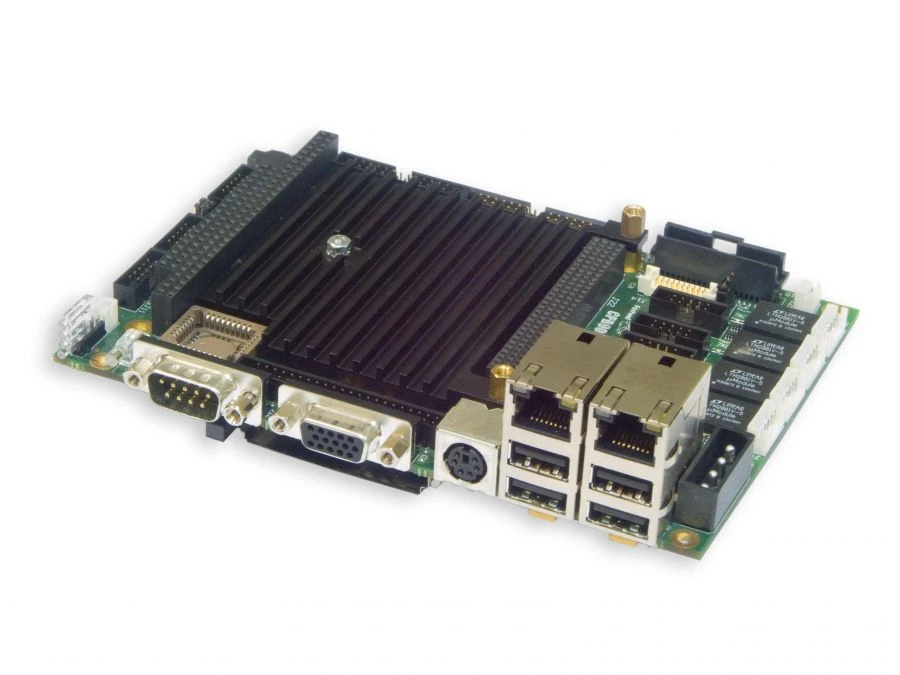

The product is a 3.5" processor module designed for embedded applications requiring high performance and low power consumption. The module contains: a Compact Flash connector, two Ethernet channels, four USB ports, an HDD (IDE) port, seven serial ports, a PS/2 keyboard and mouse port, audio device ports and an external opto-isolated reset. Expansion of the module functionality is possible by connecting additional modules with PC/104 and PC/104+ interface.

Technical Specifications

Form factor	3,5"
Removable storage media	Compact Flash type 1, 2
Base frequency of the processor	0.5
Processor	AMD GEODE LX 800
RAM	DDR SDRAM 256 MB
FLASH disk	1 GB, soldered, connected to IDE interface
Ethernet	2 10/100 Mbit controllers
USB	USB 2.0 support; support up to four devices
HDD connection port	1 channel Primary (Parallel ATA), can connect up to two devices, Ultra DMA support
Serial port COM1	RS232, full, up to 115.2 Kbps
Serial port COM2	RS232, full, up to 115.2 kbps
Serial port COM3	RS232, TX/RX, up to 115.2 kbps
Serial port COM5-COM8	RS232, full, up to 230 Kbps, or RS422/485 galvanically isolated up to 921 Kbps
AC-97 compatible sound controller	Stereo line input/output; microphone input
Keyboard/mouse support	PS/2
Watchdog timers	The first one is software-controlled; the second one is hardware-controlled, with fixed interval of operation
Software compatibility with OS	FreeDOS; QNX 6.4.1, 4.25; Windows XPe; Linux 2.6
Nutrition	5 ? ±5%
Operating temperature	minus 40° C to plus 85° C
Storage temperature	minus 55° C to plus 85° C
MTBF	120000
Size	108x149,7x40,1 mm
Weight	0.3 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
