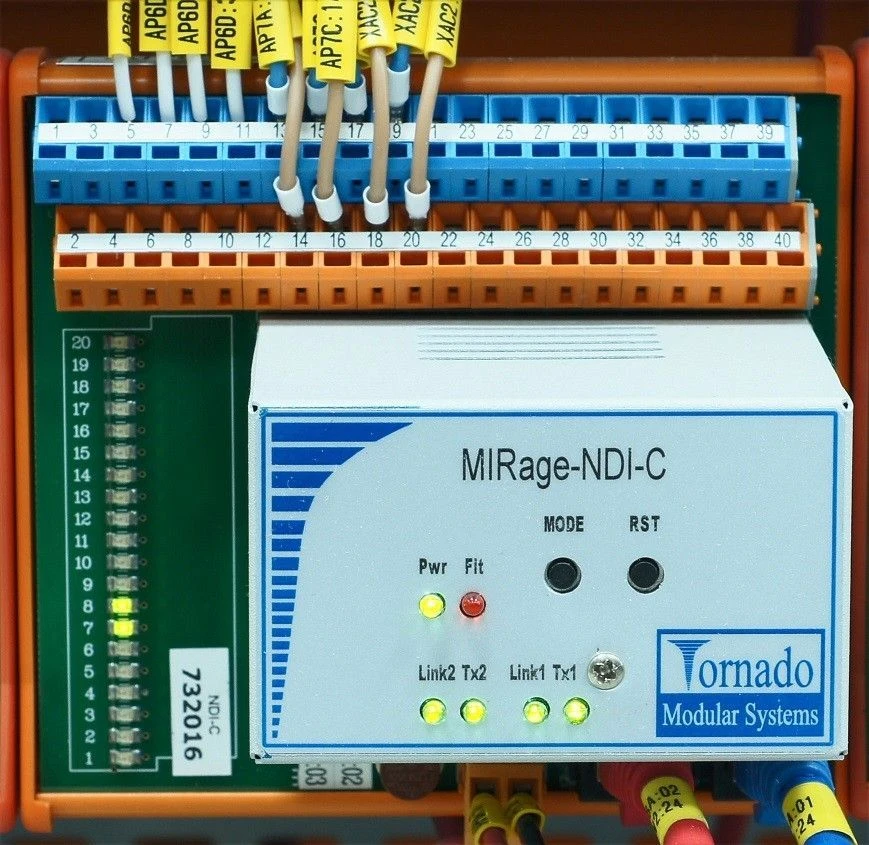

MIRage-NDI-C Discrete Input Device for Monitoring and Control Systems

Data Processing Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The MIRage-NDI-C devices are designed for input of discrete signals from sensors of "dry contact" type when building distributed information and control systems. The devices are designed to read the states of signals of discrete inputs and transfer values through a redundant digital interface Ethernet 10/100 over twisted pair using the ModBus protocol. MIRage-NDI-C devices have 20 discrete channels (DC). The "dry contacts" are powered from a 24 V source, which powers the device itself. The DCs are galvanically isolated from the system part. MIRage-NDI-C devices are designed for creation of automated process control systems (APCS) in various industries.

Specifications

Architecture

autonomous distributed I/O with redundant ethernet communication

External connectors

2 rj-45, +24v power supply, spring terminals for signal cable

Form factor

din-35 rail mount

Power Type

+24 dc

Base frequency of the processor

0.1

Polling time

Data exchange protocol

modbus udp/tcp slave

Power consumption

4 W

Galvanic insulation

Group

Dimensions width

114 mm

Weight

450 year

Type of measuring channels

input discrete potential signals 24v

Height

108 mm

Data transfer rate

100

Number of processor cores

1 pcs

Number of measuring channels

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
