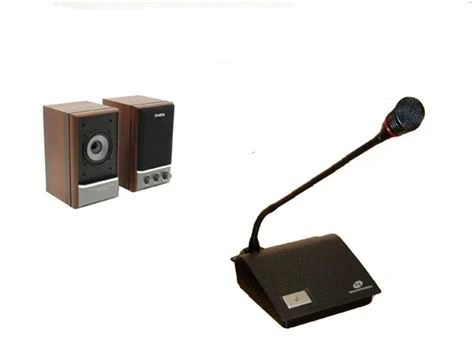

Ministudio MSR.E VABM.465287.017.017

Ministudio MSR.E (hereinafter referred to as "MSR.E") is a terminal device for meeting communications and is a part of the MAKS backbone communication complex.
MSR.E is designed to provide loudspeaking duplex communication via LAN. MSR.E is interfaced via LAN according to the scheme "point-to-point" with the telecommuting coordination device with four-wire communication channels UST.TCH4E.1.
In its turn, the telecommutation coordination device with four-wire communication channels UST.??4?.1 is connected by a four-wire line to the RKS channel board/module of 4-wire termination M4pr-RKS or to another device compatible by parameters with 4-wire ?? channel.
Two MSR.E ministudios can form a point-to-point LAN connection.
Ministudiya MSR.E is designed for operation indoors at ambient air temperature from +5°C to +40°C, with an upper humidity value of 80% at 25°C.
The remoteness of MSR.E from UST.TCH4E.1 is determined by the parameters (LAN) Ethernet
