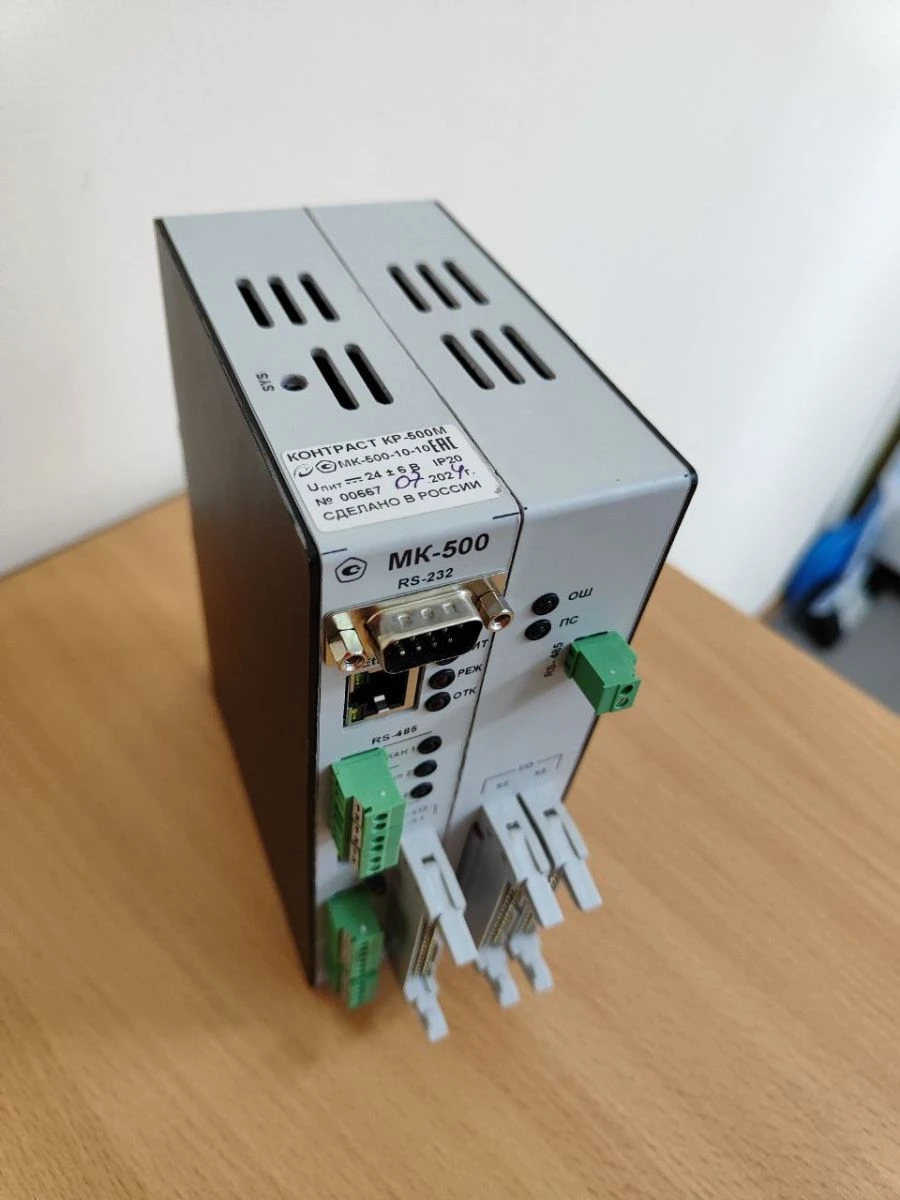

Minicontroller MK-500-10-10 KGZhT.421459.011-01

Minicontroller MK-500-10-10 is designed for the construction of stand-alone automatic control systems of technological units, as well as for the creation of separate subsystems of automatic control in the ACS. Analogue inputs and outputs of MK-500-10 have individual galvanic isolation Selection of analogue input and output signal type (0-5) mA or (0 (4)-20)mA is performed by software. MK-500-10 discrete inputs and discrete outputs have group galvanic isolation. Voltage of discrete input and output signals is 24 V, maximum output current is 0.3 A. Type and number of inputs and outputs: 12AI, 2AO, 24DI, 12DO, DIO18.
