Milur 107S.22-GZ-3-DT static energy meter

Electricity Meters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Static single-phase electric energy meter "Milur 107S" in SPLIT case

Description

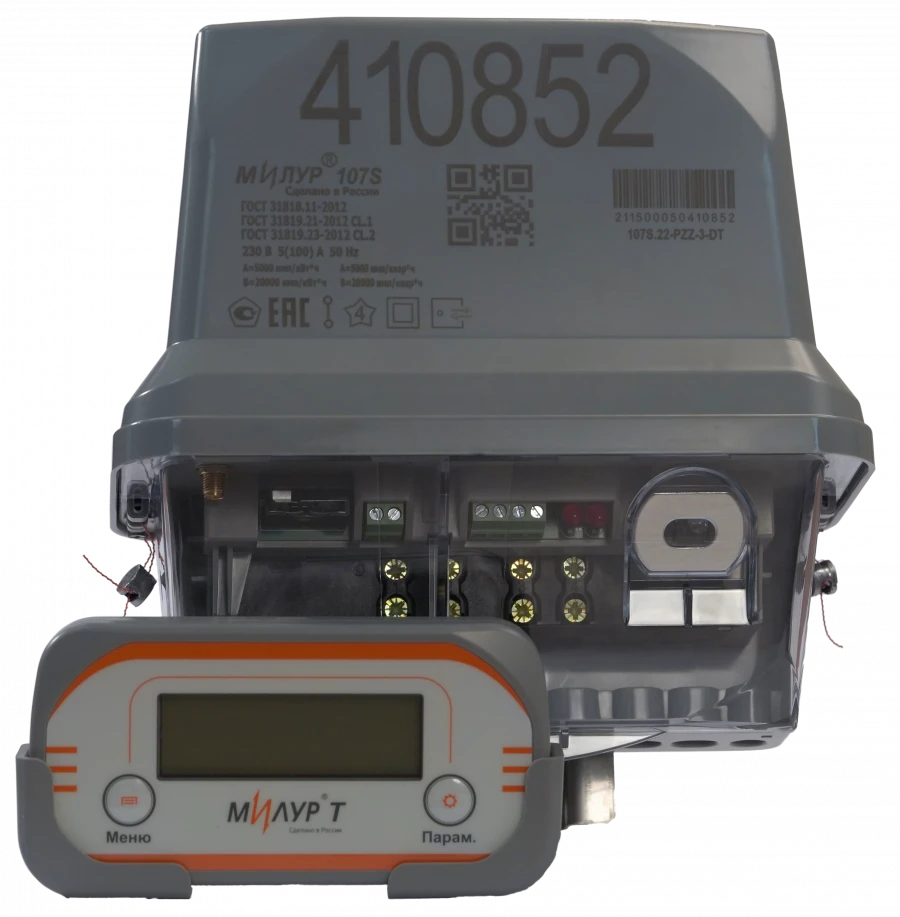

Milur 107S static single-phase electricity meter with SPODES protocol support in SPLIT case for outdoor installation with portable indication unit "Milur T" with load control relay and measuring element in the neutral wire is designed for metering of active and reactive electricity consumption in two-wire AC network with frequency 50 Hz.

The meter can operate both autonomously and as part of automated metering systems, registering electricity consumption and storing data in non-volatile memory.

The measuring unit of the outdoor meter transmits information about the consumed volume of electricity to the measuring unit of the consumer indication "Milur T" via RF 433 MHz radio interface according to Mi107 protocol.

Data exchange with automated metering systems or computer is carried out via GSM interface. The meter is equipped with an opto-port.

Specifications

Accuracy class 2.0, 1.0

Nominal voltage 230 V

Rated current 5 A

Mounting method To the screws

Maximum current 100 A

Maximum operating temperature 70 °C

Minimum operating temperature -50 °C

Type of metered energy Reactive, Active

Type of readout device Electronic

Number of phases 1

Type Multi-tariff

Type of product according to PP RF 616 Other tools and instruments for measurement, inspection and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
