Machining centre model VC40 Gantry Machine

Metal Machining Centres

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

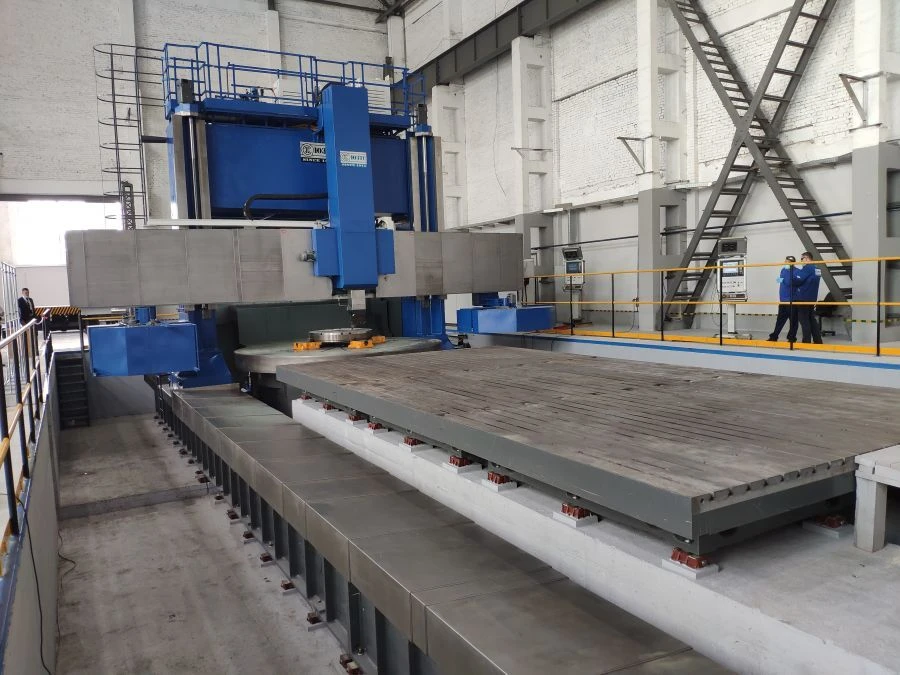

Machining centre model VC40 Gantry Machine with a machining diameter of up to 4000 mm. is designed for machining bodies of rotation, having, in addition to the surfaces of rotation, holes and grooves located outside the diametral plane of the part and at any angle to the axis of rotation. Intended for machining large-sized high-precision parts of arbitrary complex shape with various holes and grooves located at arbitrary angles.
The machine is additionally equipped with:
- mobile gantry;
- milling table;
-instrumental drilling and milling heads.

Specifications

Type of product according to PP RF 616 Turning and carousel lathes (universal, with CNC, CNC)

Machine type Product type according to RFP 616

Maximum workpiece weight 100 t

Processing height 2500 mm

Machining diameter 4000 mm - 5000 mm

Faceplate diameter 3500 mm

Main drive power 110 (55?2)
