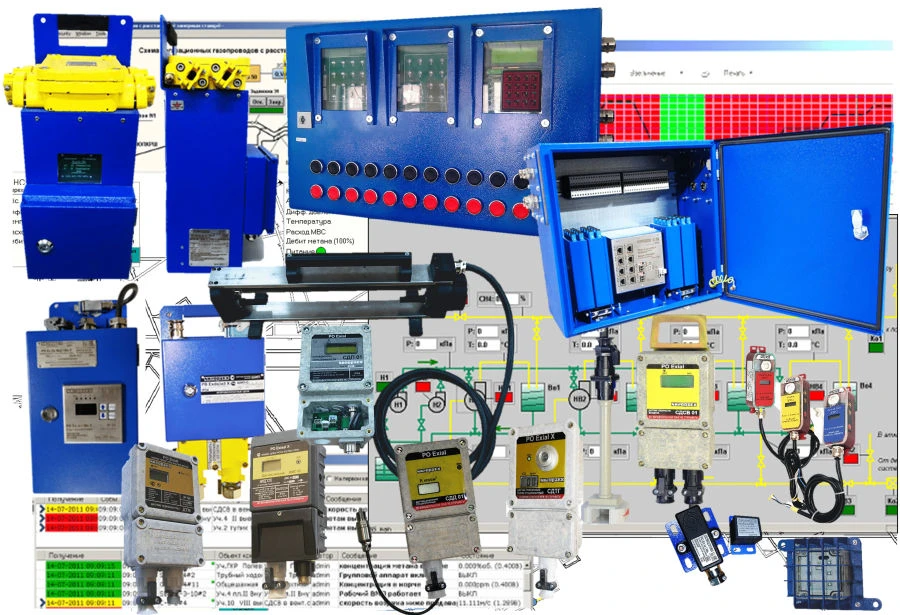

Mikon III multifunctional mine gas analytical system

Gas and Smoke Analysers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

System "Mikon III" is designed for: automatic continuous measurement of parameters and control of the state of industrial and mining-technological objects (parameters of the mine atmosphere), mining massif, production equipment; emergency control, local and centralised dispatch manual, automated and automatic control of equipment to ensure aerological safety; signalling and communication, information exchange with the control room, information processing, its display and storage, formation and storage of information, as well as for the use of the system for the control of aerological safety. The system is a measuring system. The system is designed for continuous operation. The system is used in explosive premises of mines and mines, hazardous by gas (methane) and dust, is intrinsically safe and especially explosion-proof.

Specifications

Measurement range of volumetric oxygen content, % vol. eq. 5...25

Basic error limit of measurement of volumetric content of oxygen, not more, % vol. e. ((0.5+0.02???))-(0.5+0.02???)

Time of setting of readings in the measuring channel of volume content of oxygen, not more 120

Measurement range of volumetric content of hydrogen sulphide, ppm 0...100

Basic error limit of hydrogen sulphide volume content measurement in the range of 0-10 ppm, not more, ppm -1.5...1.5

Basic error limit of hydrogen sulphide volume content measurement in the range of 10-100 ppm, not more, % RH. -15...15

Time of establishment of readings in a measuring channel of volume content of hydrogen sulphide, not more 45

Measuring range of volumetric content of sulphur dioxide, ppm 0...20

Basic error limit of measurement of volumetric content of sulphur dioxide, not more, ppm ((0.2+0.06???))-(0.2+0.06???)

Time of setting of readings in the measuring channel of volumetric content of sulphur dioxide, max. 120

Limits of permissible variation of readings in measuring channels of toxic gases and oxygen, fraction from the limits of permiss -0.5...0.5

Measuring range of mass concentration of dust, mg/m3 0...2000

Basic error limit of dust mass concentration measurement, not more than, % O.D. -20...20

Air velocity measurement range 0.2...30

Basic error margin of measurement of air flow velocity, not more than, m/s ((0.10+0.03V))-(0.10+0.03V)

Pressure difference measuring range 0...5.89 MPa

Absolute pressure measuring range, kPa 60...2500

Absolute pressure measuring range, MPa 0...10

Gauge range, C 0.4...100

Upper limit of hydrostatic pressure measurement 250

Basic error limit of measurement of pressure difference, absolute, gauge and hydrostatic pressures, not more, % pr. -2...2

Measuring range of temperature measuring channels -10...85 °C

Basic error limit of temperature measurement, not more than -0.5...0.5 °C

Relative humidity measuring range 10...100 %

Basic error limit of relative humidity measurement, not more, % RH -6...6 %

Liquid volume flow and volume measurement range 0.3...2680

Basic error limit of measurement of volumetric flow rate and volume of liquid, not more, % relative. -2.5...2.5

Number of connection channels for analogue and discrete sensors, pcs. Not limited

Number of discrete outputs connections, pcs. Not limited

Number of connection channels of digital field devices, pcs. Not limited

Duration of work at absence of external power supply, not less than 16

Communication interfaces BS6556

Data transmission rate at the field level, kBaud 0.6...19.2

Data transfer rate at trunk level, kBaud 0.6...10000

Operating temperature range 30...55 °C

Degree of protection, not less than IP54

Explosion protection level RO I Ma

Types of explosion protection «s»

Explosion protection certificate EAES NO. RU C-RU.AA87.V.01278/24

Certificate of type approval of measuring instrument RU.C.31.001.A #56555

Number of monitored objects, pcs. On implementation project

Number of measurement channels, pcs. On implementation project

Measuring range of volumetric content of methane, % vol. eq. 0...100

Basic error limit of methane volume content measurement in the range of 0-2.5 % vol. d, not more, % vol. d. -0.1...0.1

Basic error limit of methane volume content measurement in the range of 5-100 % vol. d, not more, % vol. d. -3...3

Time of setting of readings in the measuring channel of volumetric content of methane, no more than 30

Triggering time of fast-acting gas protection on methane volume content, not more 30

Operation time of gas protection on methane volume content, not more than 15

Measurement range for volumetric content of flammable gases, % NCPr 0...100

Basic error limit of measurement of volumetric content of flammable gases, not more, % NCPR -5...5

Пределы допускаемой вариации показаний в измерительных каналах объемного содержания метана и горючих газов, не более, доля от пр -0.5...0.5

Measuring range of volumetric content of carbon monoxide, ppm 0...500

Basic error limit of measurement of volumetric content of carbon oxide in the range 0-50 ppm, not more, ppm ((2+0.1???))-(2+0.1???)

Basic error limit of measurement of volumetric content of carbon monoxide in the range 0-500 ppm, not more, ppm -50...50

Time of setting of readings in the measuring channel of volumetric content of carbon monoxide, not more than 120

Measuring range of volumetric content of carbon dioxide, % vol. ppm 0...1

Basic error limit of measurement of volumetric content of carbon dioxide, not more, % vol. ppm -0.1...0.1

Time of setting of readings in the measuring channel of volumetric content of carbon dioxide, no more 30

Measurement range of hydrogen volume content, ppm 0...1500

Basic error limit of hydrogen volume content measurement in the range of 0-1500 ppm, not more, ppm ((2+0.12???))-(2+0.12???)

Measurement range for volumetric hydrogen content, % vol. vol. 0...2

Basic error limit of hydrogen volume content measurement in the range of 0-2 % vol. ppm, not more, % vol. ppm. -0.1...0.1

Time of setting of readings in the measuring channel of hydrogen volume content, not more 120

Nitrogen oxide volume measurement range, ppm 0...20

Basic error limit of measurement of nitrogen oxide volume content in the range 0-10 ppm, not more, ppm ((0.3+0.1???))-(0.3+0.1???)

Basic error limit of measurement of nitrogen oxide volume content in the range of 0-20 ppm, not more, ppm ((1+0.1???))-(1+0.1???)

Nitrogen dioxide volume measurement range, ppm 0...20

Basic error limit of measurement of volumetric content of nitrogen dioxide in the range 0-10 ppm, not more, ppm ((0.2+0.05???))-(0.2+0.05???)

Basic error limit of measurement of volumetric content of nitrogen dioxide in the range 0-20 ppm, not more, ppm ((0.5+0.1???))-(0.5+0.1???)

Time of setting of readings in the measuring channel of volumetric content of nitrogen oxide and dioxide, no more than 120

Registration No. of type approval certificate of measuring instrument 58269-14

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
