Available for Import

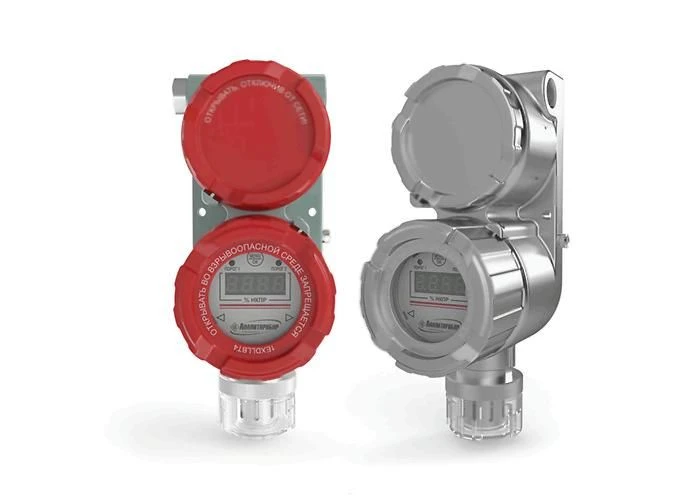

Gas analyser sensor DAK-CH-138 IBYAL.418414.071-138

Gas and Smoke Analysers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Sensor-gas analyser DAK-CH-139 ????.418414.071-139 Gas analyser sensor-gas analyser DAK-CO2-126 IBYAL.418414.071-126 Gas analyser sensor-gas analyser DAK-CH4-129 IBYAL.418414.071-129

Designed, depending on the modification, for continuous automatic measurement of:- pre-explosive concentrations of methane, hydrocarbon gases, including associated petroleum gas; hydrocarbon vapours, including vapours of oil and petroleum products, alcohol vapours;- volume fraction of carbon dioxide.The field of application of gas analysers - control of air of working zone of premises and open areas of enterprises of chemical, oil and gas producing and transporting, petrochemical, metallurgical, pulp and paper and other industries, nuclear power plants, gas distribution organisations, as well as floating drilling rigs, marine transport facilities in macroclimatic regions with moderately cold climate.

Technical Specifications

Availability of gas analyzer sensor	Built-in
Type of gas analyzer	Stationary
Limits of allowable additional error at every 10 C change of ambient temperature	0,5?
Section of the range of operating (maximum operating) temperatures in which the additional error is normalized, C	minus 60 to plus 80
Operating (operating limit) temperature range, C	Minus 60 to plus 80
Range of operating (operating limit) ambient temperature during measurement, C	Minus 60 to plus 80
Operating (operating limit) ambient temperature range at switching on, C	From minus 40 to plus 80
Type of climatic version according to GOST 15150	UHL1 (T2, TM2)
Explosion protection marking	1Ex db IIC T6T4 Gb X
Housing material	metal
Weight	6.5 kg
Supply voltage, V	11 to 32

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
