Meter of polarisation potential IPP 1 "Mendeleevets"

Special Purpose Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

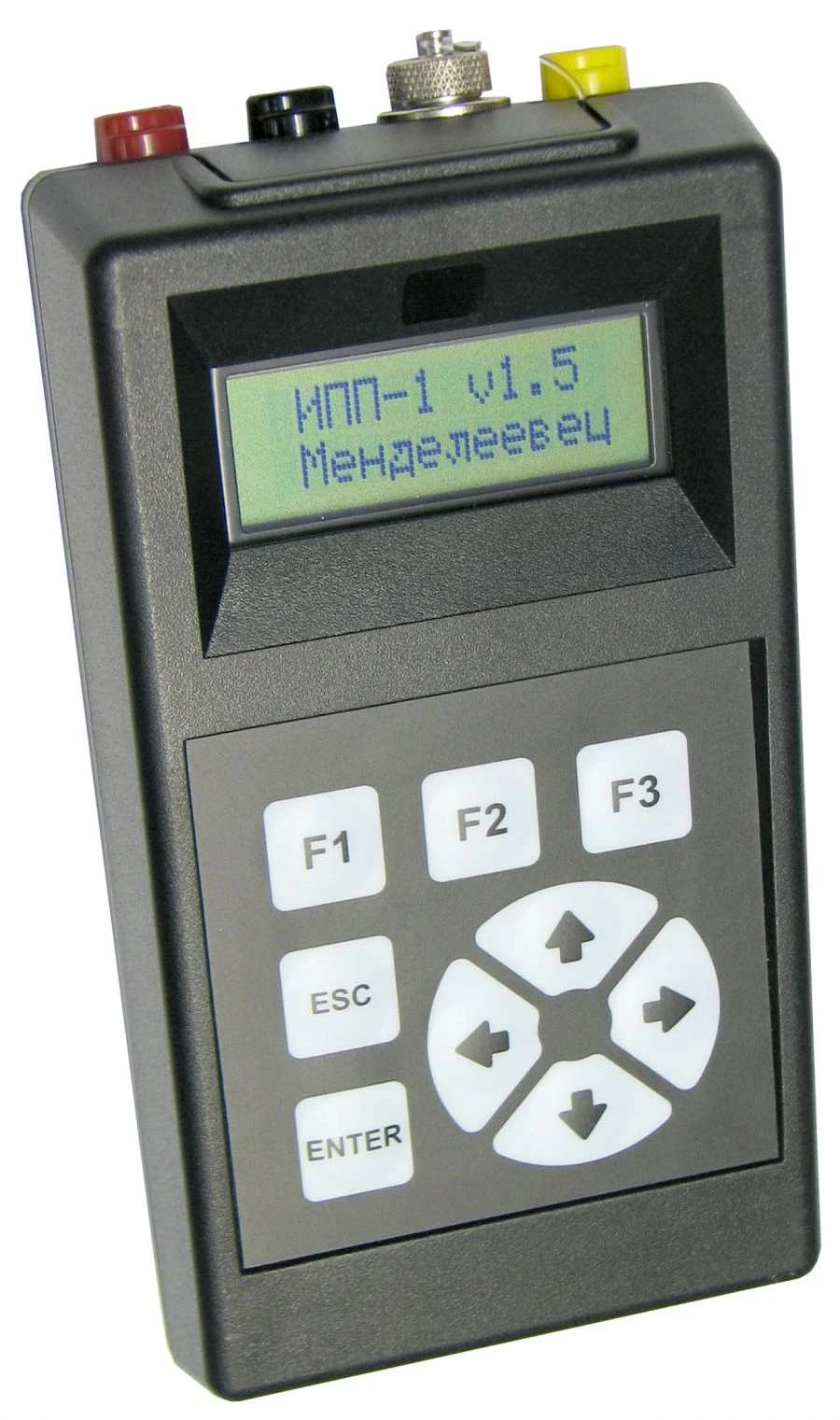

Polarisation potential meter IPP 1 "Mendeleevets" is designed for measuring DC voltage and strength. The device is used to measure protective (with ohmic component) and polarisation (without ohmic component) potentials of underground structures under cathodic protection. The method of polarisation potential measurement is switching (disconnection) of the auxiliary electrode according to GOST 9.602. Potential measurements are carried out at specially equipped control and measuring points (CMP), with installed copper-sulphate reference electrode (measuring electrode "IE") and electrochemical potential sensor (auxiliary electrode "AE").

Technical Specifications

Weight, not more	0.2 kg
Service life, at least	5 a
DC voltage measurement ranges	-100...100 V
DC current measurement range	-0.005...0.005 A
Measuring range of polarisation potential	-2...2 V
Measuring range of protective potential (Utz)	-10...10 V
Measuring range of polarisation current (Ip)	-0.005...0.005 A
Measurement range of DC current on external 75 mV shunt	-9999...9999 A
Input resistance at DC voltage measurement, not less than	10000000 ohm
Number of results stored in non-volatile memory	5000
Weight with accessories, not more	0.55 kg
Dimensions (DxWxH), mm	150x80x38
Level of suppression of industrial noise with frequency of 50 and 100 Hz, not less than	40
Instrument power supply type	From 2 AAA electrochemical batteries with nominal voltage 1.5 V
PC communication interface	USB
Operating temperature	-10...50 °C
Degree of protection against external influences	IP40 according to GOST 14254

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
