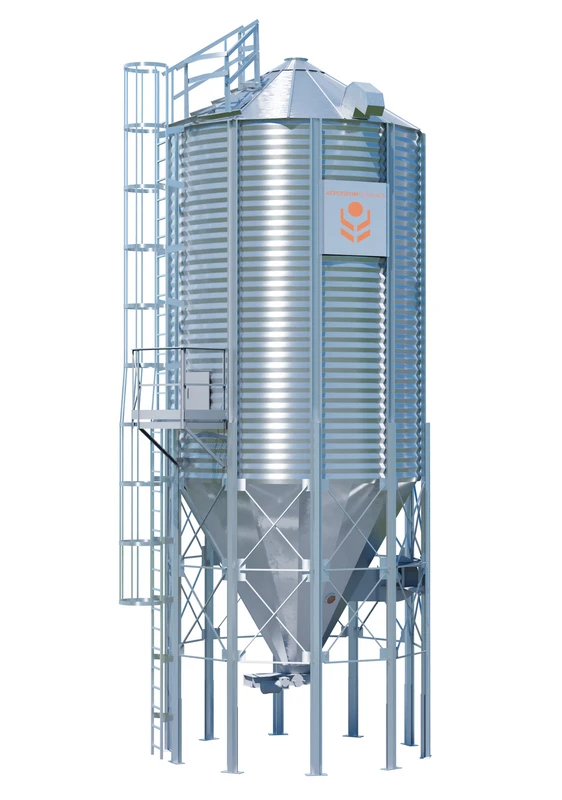

Metal silo with cone bottom SKA116-2-3,9-7 (clearance 1230 mm)

Purpose:
The silo is designed for short-term storage of non-tracking grain crops with volumetric weight up to 800 kg/m3 or for long-term storage. Silo provides reliable protection of grain crops from the effects of bad weather, from spoilage by rodents and birds.
Advantages:
1. The silo is made of corrugated galvanised sheets of high-strength rolled metal with galvanising depth not less than 450 g/m2 with external stiffening ribs.
2. Assembly of the silo is made by high-strength bolts of strength class 8.8 and 10.9 with plastic washers to ensure tightness and strength of the silo. 3.
3. Laser markings on the parts and instructions with 3D views speed up and facilitate silo assembly.
4. The silo design is designed to withstand the loads of high precipitation regions: 5 snow region (320kg/m2) and 2 wind region (31kg/m2 (80km/hour)), which is superior to imported technologies in withstanding loads.
5. Availability of sampling site to monitor the condition of the product.
6. Silo design eliminates the ingress of water and snow into the internal space of the silo.
7. The silo includes membrane type sensors for measuring the upper and lower levels of the product.
8. The silo includes a ladder with a service platform from the base of the silo to the side hatch on the second tier of the silo.
