Available for Import

MegaTron Self-Dumping Platform 6140 MT-0010010.6140 SB for Efficient Agricultural Transport

Vehicle Bodies

Manufacturer: MEGATRON LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

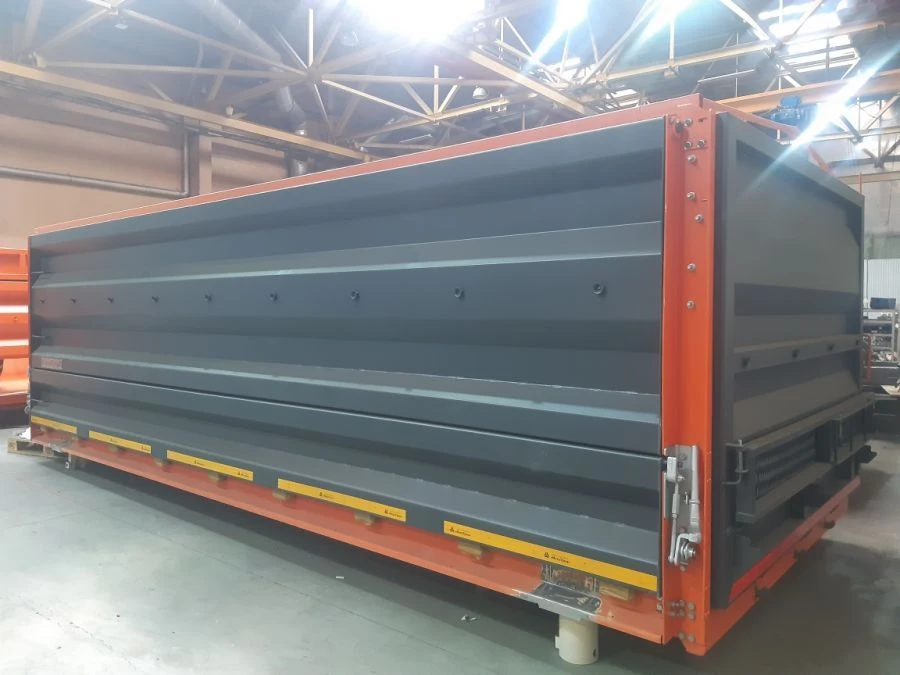

Dumping platform with three-sided (two-sided) unloading, designed for transporting bulk goods of national economy and agricultural products (grain, seed). Possible unloading angle on two sides is 45 degrees, backward - 10...30 degrees. Dump body made of 09G2S steel has its own design features to keep working capacity and fulfil its functionality during the whole service life. The body is equipped with seals and accessories that ensure safety, reliability and convenience in operation.

Specifications

Overall dimensions

6390x2550x to 2260 mm

Body volume

Up to 30 cu.m.

Internal dimensions of the body

6140x2340x to 1800 mm

Weight of superstructure with subframe

3400 kg

Side panel design

top board - with top hinge, bottom board - with bottom hinge, height of bottom board 500mm (book version) side boards in version without middle posts;

Rear wall design

"one-piece board on top hinge, either book or swing gate, with dispenser.

Superstructure material

steel 09g2s., made in the form of profiled panels. the thickness of the board panels is 3 mm, floor decking - 4 mm.

locking mechanism

mechanical board locks are opened manually, lower side boards are equipped with a spring mechanism to facilitate board lifting.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
