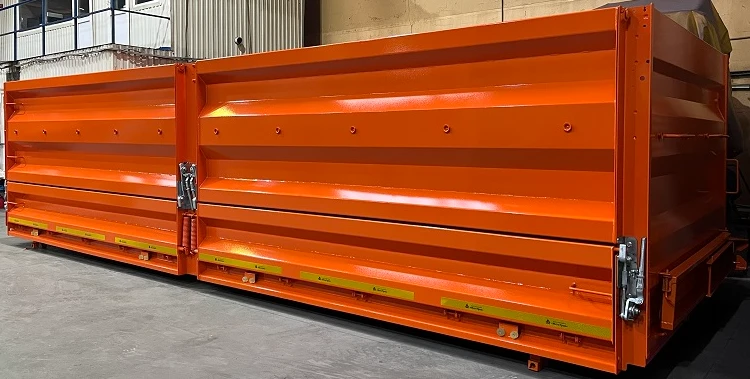

MegaTron 7500 Dump Body MT-0010010.7500 SB Available for Import

MegaTron 7500 Dump Body for Efficient Agricultural Transport

Vehicle Bodies
Manufacturer: MEGATRON LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Dumping platform with three-sided (two-sided) unloading, designed for the transport of bulk goods of national economy and agricultural products (grain, seed). Possible unloading angle on two sides is 45-50 degrees, backwards - 10...17 degrees. Dump body made of 09G2S steel has its own design features to keep working capacity and fulfil its functionality during the whole service life. The body is equipped with seals and accessories that ensure safety, reliability and convenience in operation.

Specifications

Height
2170 mm
Width
2550 mm
Length
8100 mm
Superstructure material
steel 09g2s., made in the form of profiled panels. the thickness of the board panels is 3 mm, floor decking - 4 mm.
locking mechanism
mechanical board locks are opened manually, lower side boards are equipped with a spring mechanism to facilitate board lifting.
Rear wall design
One-piece board on top hinge, either book or swing gate, with dispenser.
Side panel design
Top side - with top hinge, bottom side - with bottom hinge, height of bottom side 500mm (book version) Side boards in version with middle post
Weight of superstructure with subframe
3986 kg
Body volume
up to 33.35 cu.m.
Internal dimensions of the body
7500x2340x to 1900mm
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
