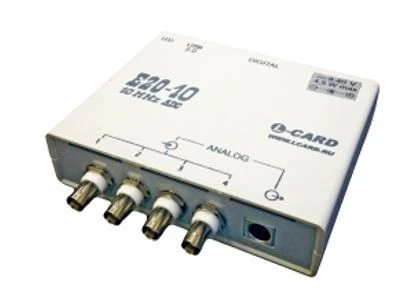

Measuring voltage converter L-CARD-E20-10-D-1-I

Electrical Measurement Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The converter is designed to measure DC and AC voltage, as well as for input, output and processing of analogue and digital information in measuring devices and systems based on personal computers. The converter is connected to a personal computer and carries out reception and transmission of digital information via USB interface

Specifications

DC voltage measurement range -3 to +3 V

Tolerance limits of the reduced basic error of DC voltage measurements 0,25 %

AC voltage measurement range 10(-3) to 0.7 V in the frequency range from 1000 to 4900 kHz

Tolerance limits of relative basic error of AC voltage measurements 0.2 to 30 per cent

DC voltage reproduction range -5 to +5 V

Tolerance limits of the reduced basic error of DC voltage reproductions 0,3 %

Number of digital inputs 16 pc

Number of digital outputs 16 pc

DC supply voltage 8...40 V

Power consumption 4.5 W

Overall dimensions Not more than 142×132×40mm

Weight 0.3 kg

Average service life 10 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
