Measuring systems with automatic photovideo fixation multi-purpose "Prizma-M-2P".

Movement Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

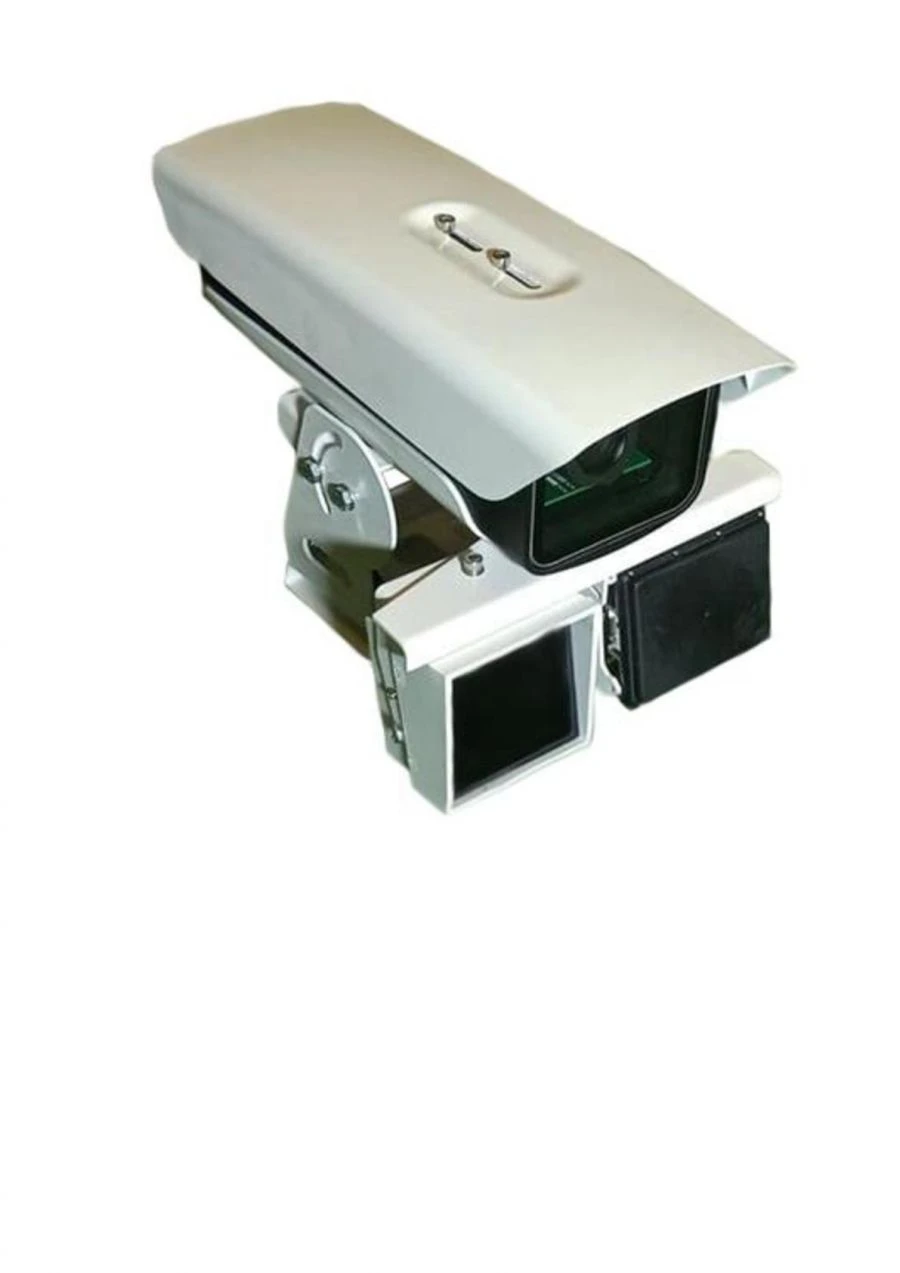

Systems measuring systems with automatic photo-video fixation multi-purpose "Prisma-M-2R" (hereinafter - Systems) are designed to measure the speed of vehicles (hereinafter - TS) by radar method, by video frames in the control zone and on the controlled road section in automatic mode, measuring the values of the current time synchronised with the national scale of coordinated time UTC (SU), determining the coordinates of the location of the Systems in the plan. The Systems are designed for operation at stationary location on rigid roadside structures.
The Systems record events in accordance with GOST R 57144-2016: C0-C16.
The systems are special technical means operating in automatic mode and having photo and video recording functions to ensure the fixation of administrative offences.

Specifications

Measurement range of vehicle speed in the control zone based on video frames 0...350

Measurement range of vehicle speed on the controlled section 0...350

Measurement range of vehicle speed in the control zone by radar method 1...320

Limits of permissible absolute error of vehicle speed measurements in the control zone based on video frames -1...1

Limits of permissible absolute error of vehicle speed measurements in the controlled area -1...1

Limits of permissible absolute error of vehicle speed measurements in the control zone by radar method -1...1

Limits of permissible absolute error of determination of the current time value in the national coordinated time scale -100...100

The limits of allowable absolute instrumental error (at probability level of 0.95 and geometric factor PDOP ? 3) are defined by -3...3 m

Degree of protection according to GOST 14254-2015 IP66/IP67**

Operating conditions ambient temperature -60...65 °C

Operating conditions relative humidity at 25 °C 0...98 %

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
