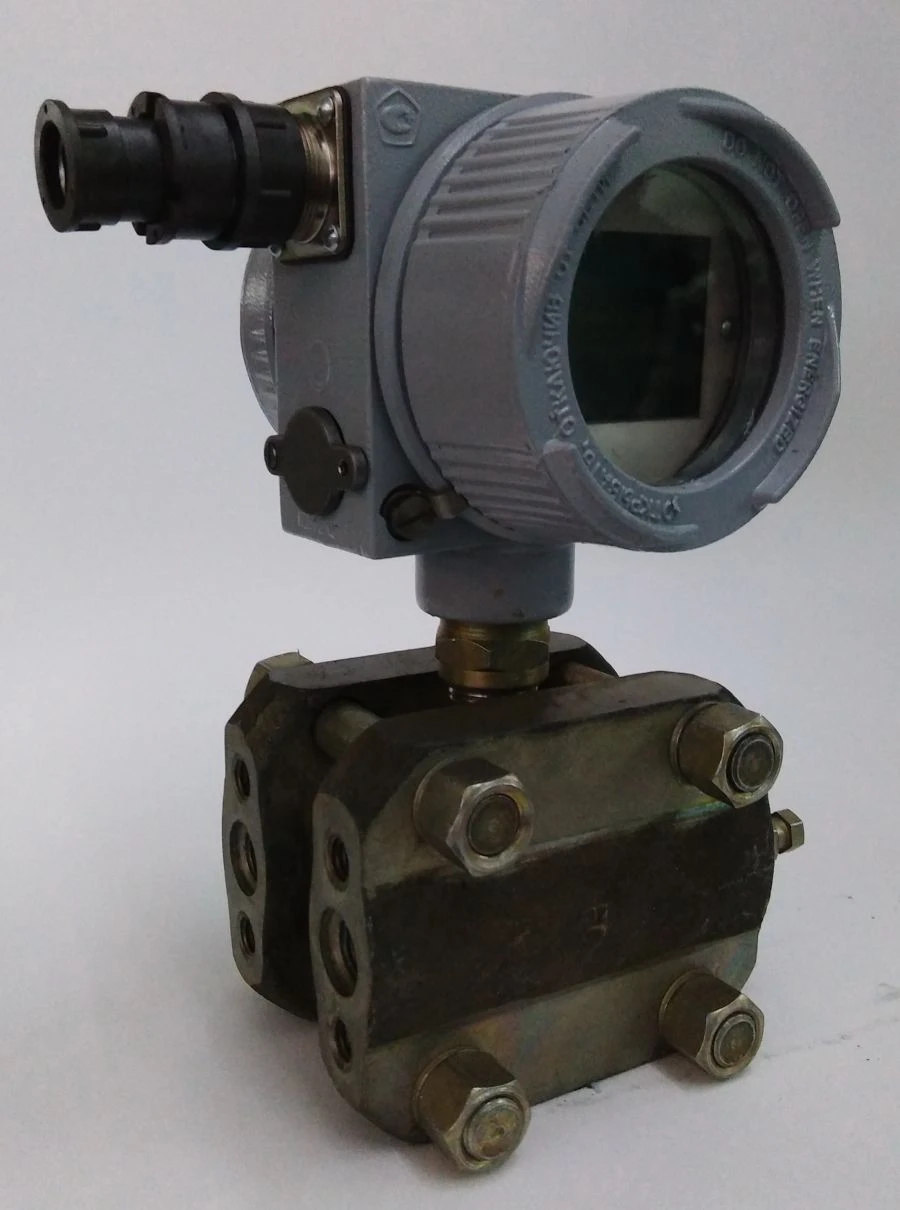

Measuring pressure transmitter Sapphire-22MP-VN-DA

Pressure Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Measuring pressure transmitter Sapfir-22MP-VN-DIV Pressure transmitter measuring Sapphire-22MP-VN Measuring pressure transmitter Sapfir-22MP-VN-DV Measuring pressure transmitter Saphir-22MP-VN-DD Measuring pressure transmitter Sapfir-22MP-VN-DI

Measuring pressure transmitter Sapfir-22MP-VN-DG

Description

The Sapphire-22MP-VN-DA pressure transducers are designed for continuous conversion of the absolute pressure value of the measured parameter into a unified current signal.
Advantages of using Sapphire-22MP-VN-DA transducer:
-Convenience and simplicity of transducer maintenance in operating conditions;
-Reduction of installation costs;
-Reduction of time during commissioning, adjustment and calibration by reducing the number of trips to the place of installation of converters and operative finding of faults;
-Zero setting, adjustment, reconfiguration of parameters is performed using the control panel without depressurisation of the electronic converter housing, which is especially important for converters located in hazardous areas, as there is no need to dismantle and remove the converters from the hazardous area.

Specifications

Degree of protection

ip66

Output signals, mA, dc

0…5 (5…0); 0…20 (20…0); 4…20 (20…4)

Power supply from external sources

11...50 VDC for transmitters with 4...20 ma (20...4 ma) signal 11...50 VDC for transmitters with 0...5 ma (5...0 ma), 0...20 ma (20...0 ma) signal

Upper limit

1...16000

Explosion protection marking

1exdiibt5/h2 0exiaiict4 x

Vibration resistance, version group according to GOST 52931
