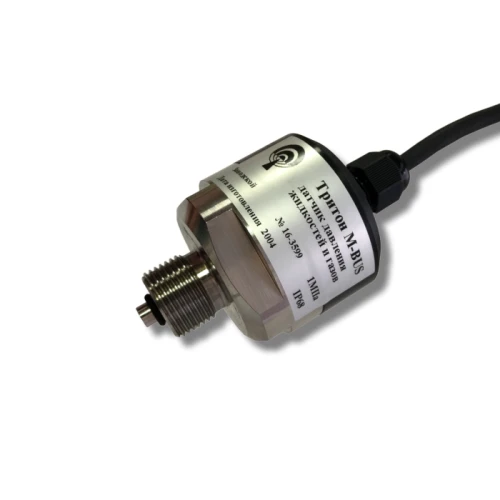

Water Pressure Sensor Triton for Accurate Liquid and Gas Pressure Measurement

Pressure Measuring Instruments

Manufacturer: AVANGARD OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The sensor is designed to measure and convert the applied gauge pressure of liquids and gases into a digital signal. The digitised pressure value is transmitted via the Meter-Bus interface using the standard protocol (EN1434-3)

Specifications

Type depending on the operating principle

Load piston

Assignment

Exemplary

Service life

7 year

Current consumption in passive mode, mA

Ambient air temperature range

-30...60 °C

Degree of protection

IP68

Permissible overload pressure (max. 15 min.)

1.2 MPa

Controlled temperature range (supplied to the connection)

-30...100 °C

Pressure measuring range

0...1 MPa
