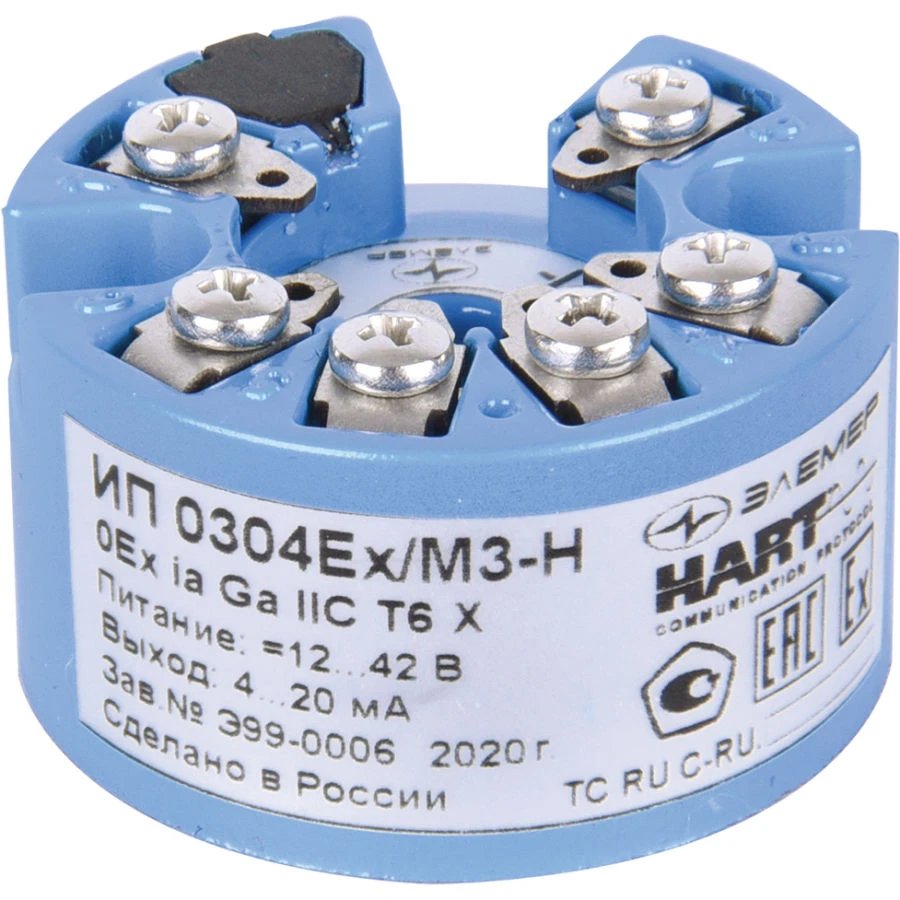

Measurement Converters IP 0304/M3-N-D44 for Resistance Thermometers

Digital Signal Converters

Manufacturer: ELEMER LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The measuring converters ?? 0304/M3-N-D44 are designed for measurement and conversion of signals coming from resistance thermocouples (RT), platinum resistance thermocouples (TSP) with individual static characteristics (ISH), thermoelectric converters (TP), potentiometric devices of direct current in a unified output signal of direct current from 4 to 20 mA or from 4 to 20 mA with superimposed on it digital signal via HART protocol. The UUTs are used in various technological processes in industry and power engineering. Connection schemes: 2-, 3-, 4-wire. The possibility of working with a unified voltage signal -100 ... 100 mV and with potentiometric sensor signals (up to 10 kOhm) is realised.

Specifications

Vibration resistance according to GOST R 52931-2008

Group F3

Explosion protection

0Ex ia IIA T6 Ga X, 0Ex ia IIB T6 Ga X, 0Ex ia IIC T6 Ga X, 0Ex ia IIA T5 Ga X, 0Ex ia IIB T5 Ga X, 0Ex ia IIC T5 Ga X, 0?? ia IIA T4 Ga X, 0?? ia IIB T4 Ga X, 0?? ia IIC T4 Ga X, 0?? ia IIA T3 Ga X, 0?? ia IIB T3 Ga X, 0?? ia IIC T3 Ga X, [Ex ia Ga] IIA X

Type of digital protocol

HART v.7 (4...20 mA)

Mounting of the measuring transducer (MT)

In the case of the temperature converter or on the metal strip "AD-01" for mounting on DIN-rail

Programmable error current

"Low" (3.7...3.8 mA) or "High" (20...23 mA)

Warranty period

24 months (from commissioning) or 36 months (from shipment)

Inspection interval

Up to 4 years old

Electromagnetic compatibility (EMC)

IIIA

Overall dimensions

Diameter 44 mm, height 24 mm

Power supply voltage

=10...42 V (without HART)

Degree of protection against dust and moisture

IP20

Output signal, mA

4...20

Climatic version

UHL3.1 according to GOST 15150-69 (from minus 60 to plus 70 C)

Type (NCC) of primary converter

CWD (ISX), 50M, 100M, 50P, 100P, Pt100, Pt500, Pt1000, 100H, 1000H, TJK(J), TMK (T), TKKn (E), TKK(L), TCA(K), TPP(S), TPP (S), TPP(B), TNN(N), TWR (A-1), -100 mV....+100 mV, -1000 mV...+1000 mV, 400 Ohm, 4000 Ohm, 10 kOhm

Compliance with GOST R IEC 61508-2-2012 "Functional safety of electrical, electronic, programmable electronic systems".

Safety Integrity Level 2 (SIL 2)

TC connection diagrams

2-, 3-, 4-wire

Minimum measured temperature

From minus 210 C

Maximum measured temperature

Up to +1820 C

Possibility of simultaneous operation with two TCs using 2-wire scheme or with two TPs using built-in CHS

Armoured glass

Accuracy class

Up to 0.05 C (depending on the type of NCS)

Execution

General industrial, Explosion-proof "intrinsically safe circuit i"
