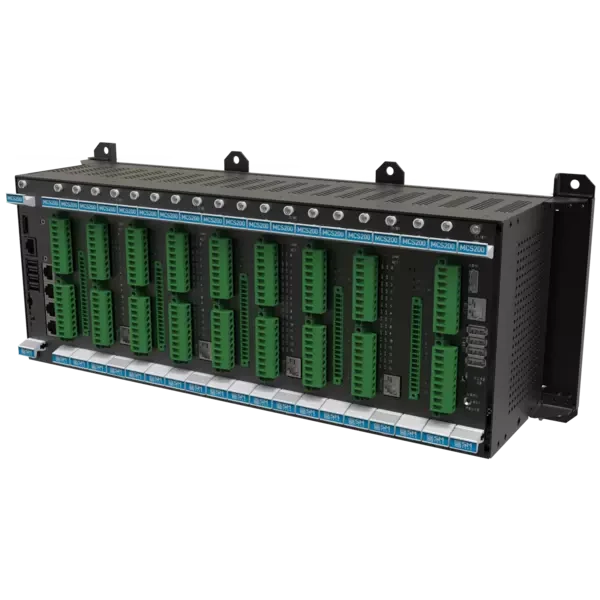

MCS200 controller
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
MCS200 is a modular, freely componentised product with the possibility of scaling in performance and information volume. To organise interaction of MCS200 components Ethernet technology is used on the backplane. The controller is intended for use as part of systems for collection/transmission/management of process information of a mining industrial enterprise/process. Depending on the configuration, MCS200 controller can be used to solve the tasks of data collection, storage, processing, issuing control actions to actuators and exchange of information with the upper level via Ethernet or field networks RS232/RS422/RS485.
Specifications
Operating temperature, C
-20...70 °C
Degree of protection against external influences
IP20
Protection class against electric shock
III (27 V) / I (220 V)
DC mains
27 V
From AC mains/DC mains
220 V
Processor module
MCS201-CPU...MCS205-CPU
Communication interface module
MCS200-101LT
Communication interface module_
MCS200-201LT
Switch module
MCS200-201LS-04, MCS200-201LS-08, MCS200-201LS-13
Power supply module
MCS200-101LP-02
Power supply module_
MCS200-201LP-02
Analogue input module
MCS200-101LA-16I, MCS200-101LA-16U
Analogue output module
MCS200-101LA-8O
Discrete input module
MCS200-101LD-32I
Discrete output module
MCS200-101LD-32O
Mezzanine carrier module
MCS200-101LM
Digital input module_
MCS200-101LI
Relay load module
MCS200-101LO
Thermistor input module
MCS200-101LA-8T
Enclosure type/variant
MCS200-101LF-04/MCS200-101LF-08/MCS200-101LF-13
Number of slots (size)
MCS200-101LF-04 (10 (40HP)); MCS200-101LF -08 (16 (64HP)); MCS200-101LF -13 (21 (84HP)
Possibility of installation of input-output modules
MCS200-101LF-04 (up to 4); MCS200-101LF -08 (up to 8); MCS200-101LF -13 (up to 13)
MCS200-101LF-04
195?258,5?141,4
MCS200-101LF -08
195x382x141,4
MCS200-101LF -13
195x485x141,4
Weight, kg
As per design solution
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
