Available for Import

Discrete input/output device. 12 input signals 220 V AC/DC, individual galvanic isolation, possibility of connection of a power

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

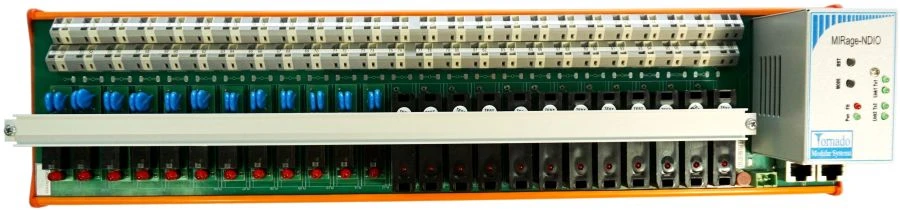

MIRage-NDIO devices are designed for input/output of discrete signals in the construction of distributed information and control systems. Reading the states of signals of discrete inputs and issuing control commands to the discrete outputs is performed via a redundant digital interface Ethernet 10/100 over twisted pair using the ModBus protocol. MIRage-NDIO devices have 12 discrete input (DI) channels of 220 V AC/DC signals and 12 discrete output (DO) channels of signals up to 3 A at 250 V AC or 0.25 A at 250 V DC. DCs have individual galvanic isolation from each other and from the system part.MIRage-NDIO devices are designed to create automated process control systems (APCS) in various industries.

Technical Specifications

Number of discrete output channels	B1/B8 2100/900 MHz pc
Request response time at 100 Mbit network speed, no more than	2
Mechanical design	DIN rail mounting
Interface type	Ethernet 10/100BaseTX - 2 channels
Data transfer rate	100
Data exchange protocol	Modbus TCP/UDP slave
Galvanic insulation	Individual
Overall dimensions	450x108x111 mm
Weight, not more	1400 g
Wago terminal block, conductor cross-section up to	2.5 mm2
Operating temperature range	-25...70 °C
Consumption current, max.	90 mA (excluding submodule current consumption)
External supply voltage (+/- 15%)	24 V
Type of input signals	220 V
Type of output signals	Switched relay contacts
Number of discrete input channels	B1/B8 2100/900 MHz pc

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
