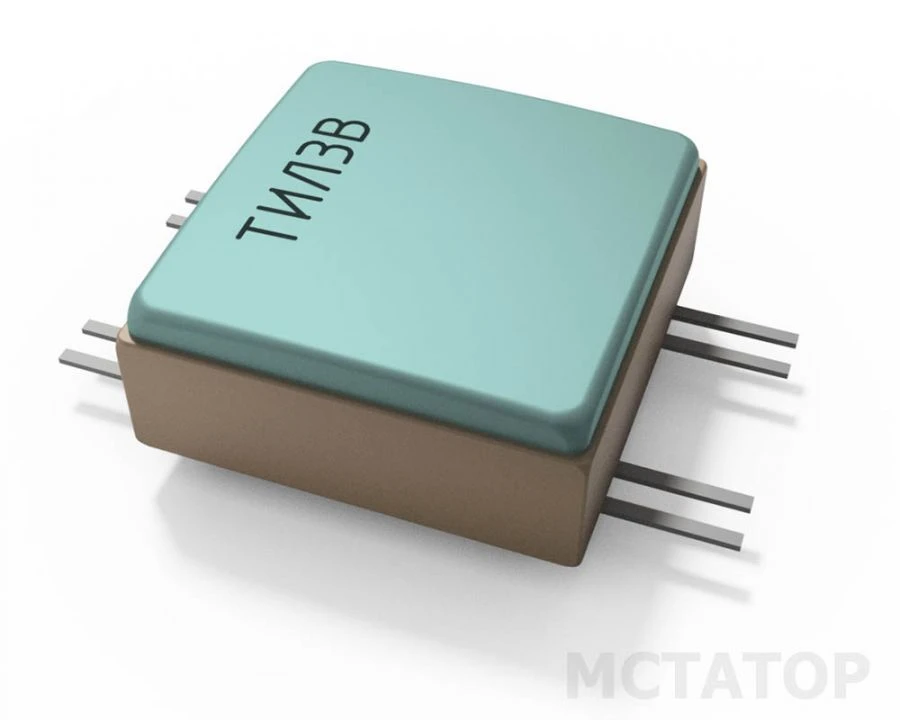

High-impedance Linear Pulse Transformer TIL3B for Galvanic Isolation and Multiplexing

Electric Transformers

Manufacturer:PJSC "MSTATOR"

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Transformers pulse linear type TIL3B with high impedance value of linear winding are designed for galvanic isolation and coordination of subscribers with multiplex channel of information exchange (GOST R 52070, GOST 26765.52, MIL-STD-1553B). Quality category "VP" and "OS".

Specifications

Capacitance between windings I, II and III-VI, not more

85(×10^-12)

Scattering inductance of the first and second windings, not more

1,6(×10^-6)

Product of pulse duration by input pulse voltage

50(×10^-6)

Decay of the flat part of the pulse at the output, not more than

10 %

Resistance of linear (leads 8 and 5) winding (impedance) at F=1MHz, not less than , not less than

7 (×10^3) ohm

Insulation resistance (voltage 100V), not less than

500 (×10^6) ohm

Electrical insulation strength: DC voltage

250 V

Symmetry of generator windings

2 %

Primary winding inductance (leads 1-2), not less than

7,5 (×10^-3)

Number of windings of each transformer

6 pcs

Transformation ratio

1.0;0.5;0.5;0.2;0.2

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
