Available for Import

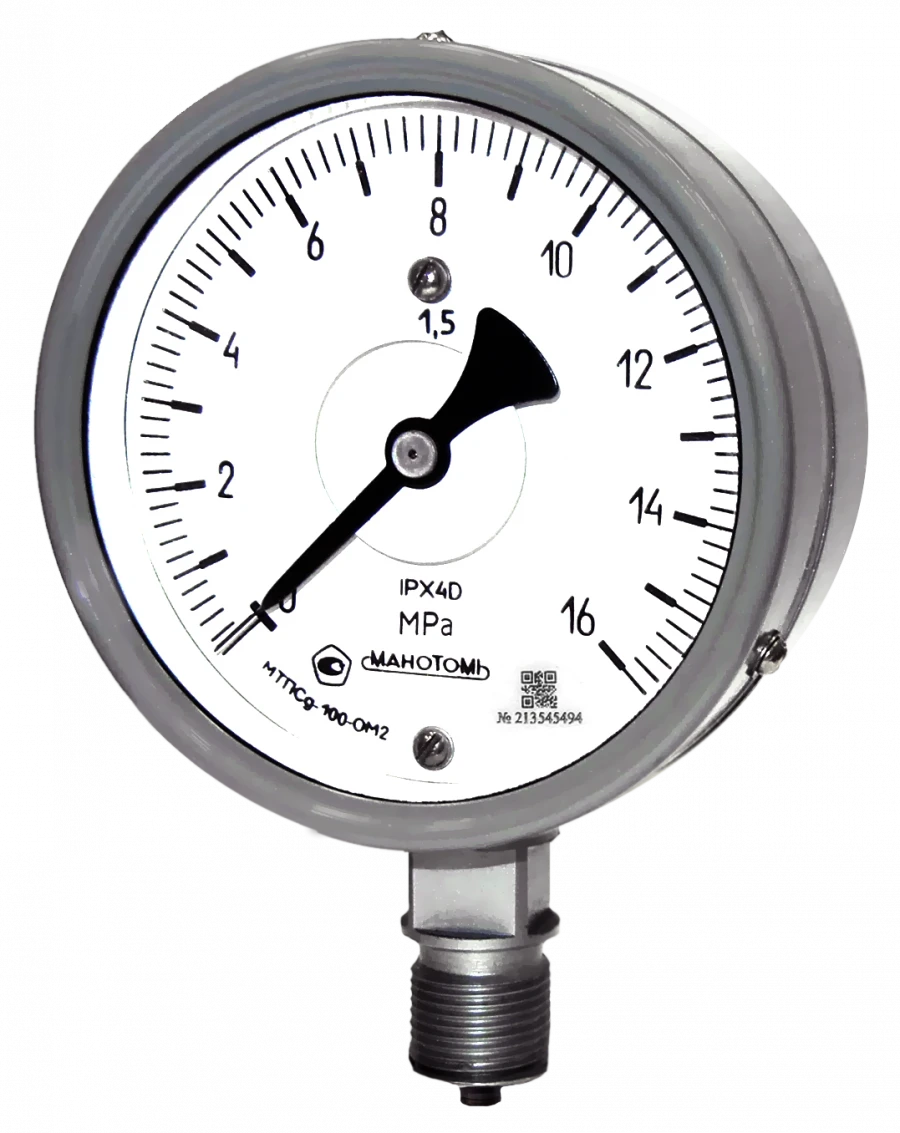

Marine Pressure Gauge MTPSc-100-OM2 for Measuring Liquid and Gas Pressure

Pressure Measuring Instruments

Manufacturer: MANOTOM OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

They are intended for measuring gauge and vacuum pressure of liquids (diesel fuel, oil, water, sea water), gases and water vapour, temperature of which at the pressure sampling point should not be more than 60º?, in the environment saturated with vapours of lubricating oil, diesel fuel and sea water.

Specifications

Body diameter

100 mm

Climatic version

OM2

Fitting threads

M20x1.5-8g, G1/2-B, K 1/2''

Accuracy class of instruments

1,5 (optional 1,0)

Degree of protection

IPX4D

Housing material

Aluminum alloy

Design options

Radical fitting without flange, radical fitting with rear flange

Range of readings

0 to 600 kgf/cm2

Inspection interval

2 year

Warranty period of operation

3 year
