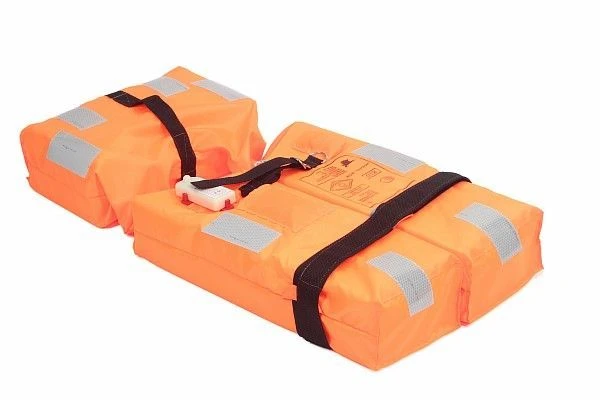

Marine life saving waistcoat "ZhSM - Cyclone"

1 Purpose
Marine life vest TU 7448-001-59528825-05 manufactured according to GOST 22336-77 (hereinafter referred to as the waistcoat) is used as an individual life preserver for people weighing from 35 to 140 kg of the personnel of vessels of the Maritime Fleet.
2 Technical data
2.1 The waistcoat meets the requirements of the Rules of the Russian Maritime Register of Shipping and the Technical Regulations on the Safety of Maritime Transport Facilities.
2.2.Overall dimensions of the waistcoat:
Length780 mm (±10 mm);Width320 mm (±5 mm);
Thickness90 mm (±10 mm).
2.3.Weight of the waistcoat with search light, not more than:1.5kg.
2.4.Vest buoyancy, not less than:16.5kg.
2.5.Strength of the waistcoat shoulder, not less than:90kg.
2.6.Strength of the belt and lifting loop fastening, not less than:320kg.
2.7.Colour of the waistcoat shell: orange.
2.8.The waistcoat is made for people with weight from 35 to 140kg and chest circumference from 90mm to 1750mm.
3 Design
3.1.The waistcoat is fitted with a whistle and search light.
3.2.The waistcoat can be easily adjusted to the figure of people...
