Manipulator rod 2,2 m

Electrical Measurement Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Manipulator boom 5,1 m Manipulator boom 3,7 m

Description

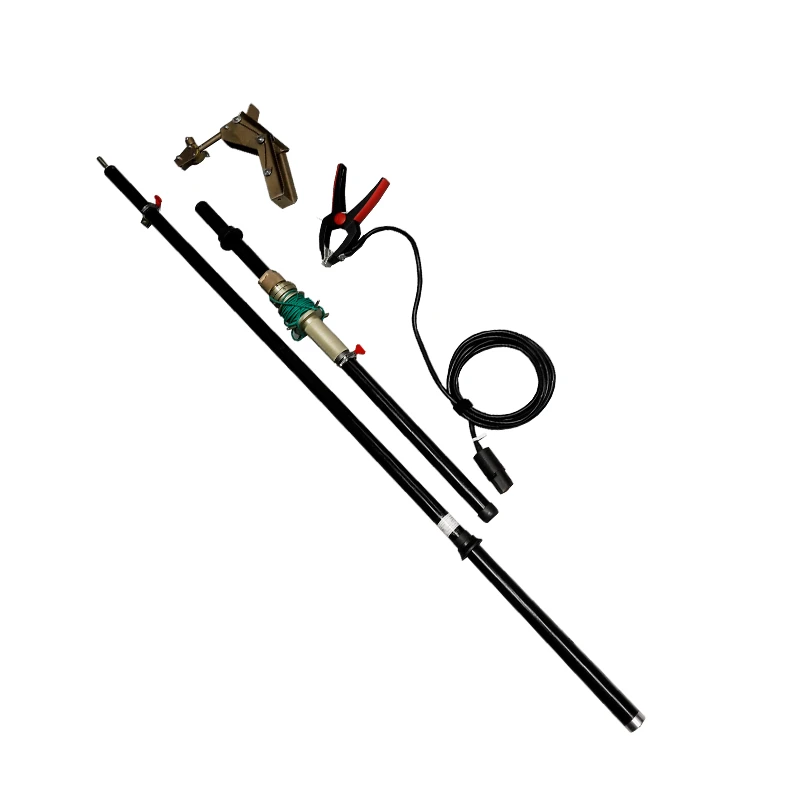

Stanga-manipulator is an auxiliary device for connecting the terminals of measuring cables of various measuring instruments to the inputs of de-energised high-voltage equipment up to 5 m high from the ground / from the tank cover, without the use of ladders / lifts.
Objects of application: high-voltage circuit breakers of various types; disconnectors, isolators and short-circuiters; high-voltage busbars; power transformers, autotransformers, electrical reactors.

Specifications

Model Manipulator bar 2,2 m

Boom length 2.2 m

Extension cable length 3.3 m

Contact pad width 25 mm

The gape of the removable clamps 70 mm

Minimum thickness of the plate to be clamped with alligator clamp 5 mm

Angle of rotation of alligator clamp in horizontal plane, deg. 0, 45, 90

Length of grounding wire not less than 3 m

Weight of the boom in the working set 3.4 kg

Operating temperature range -15 to +45 °C
