Available for Import

Interchangeable stationary measuring shunts 60.SHISV

Electrical Measurement Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

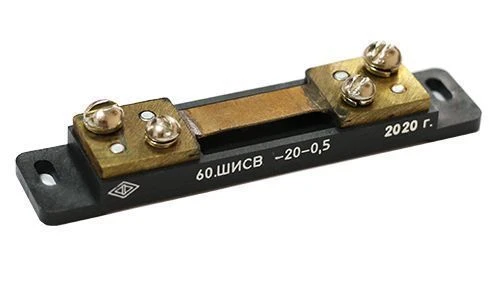

Shunts 60.SHISV are designed to extend the measuring ranges of indicating and recording DC instruments (ammeters). 60.SHISV are included in the State Register of measuring instruments of the Russian Federation No. 78710-20. The interverification interval is 2 years.

Specifications

Model 60

Accuracy class 0,5

Nominal voltage 60 mV

Rated current ? - 1; 1,5; 2; 2,5; 3; 4; 5; 6; 7,5; 10; 15; 20; 25; 30; 40; 50; 60; 75; 100; 150; 200; 250; 300; 400; 500; 600; 750; 1000; 1500; 2000; 2500

Operating temperature range -50...+60 °?

Average service life, at least 15 years

Average MTBF, not less than 150000 ?
