Magnetic discharge digital vacuum gauge VMC-PMM

Pressure Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Vacuummeter magnetic-discharge digital VMC-PMM is designed to convert absolute pressure into an electrical digital signal.
Working range of pressures from 1-10-? to 1,3 Pa.
Pressure measuring range from 1-10-? to 0,13 Pa
VMC-PMM is designed to work only with the converter with cold cathode PMM-32-1
Vacuum gauge VMC-PMM is used in automated vacuum systems for industrial, experimental and educational purposes.

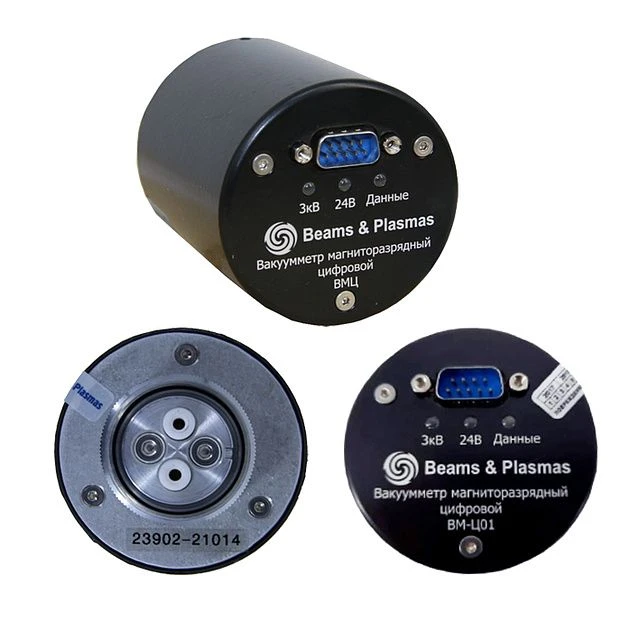

Magnetic discharge digital vacuum gauge VMC-PMM

Operation manual available on request: LCMK.239.00.00.00.00.000-02 VMC-01 (type 02 PMM - 32)

Specifications

Operating pressure range 1-10-? to 1.3

Pressure measuring range 1-10-? to 0.13

Power consumption, max. 8,0 W

Rated supply voltage 24 ±3 % V

Power supply voltage 16..32 V

Interface RS-485

Data transfer protocol ModBus RTU

Type of pressure sensor Double inverse magnetron PMM-32-1

Connection type DB-9M plug for power and data connection and connector for connection to inverter

Overall dimensions (diameter × length), not more than 70 × 115 mm

Weight, not more 0,45 kg

Execution 02 type Pmm - 32

Dustproof Yes / No - The casing of the device, with the electronics unit placed inside it, is made of aluminium alloy and complies with the standard IP 21 according to GOST 14254-2015, IP 21 according to GOST 14254-2015, III class of protection against electric shoc

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
