Available for Import

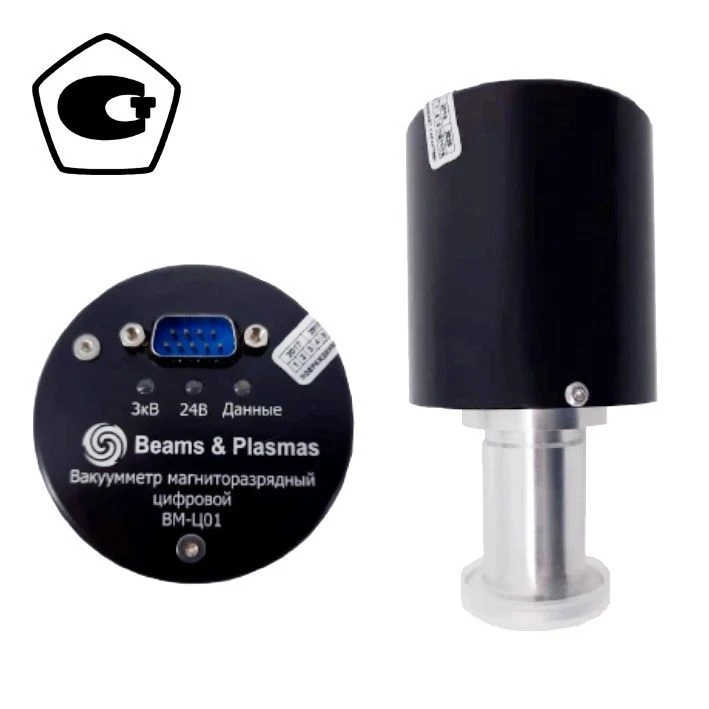

Magnetic discharge digital vacuum gauge VM-C01

Pressure Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Vacuummeter magnetic-discharge digital VM-C01 is designed to convert absolute pressure into an electrical digital signal. The working range of pressures from 1 x 10 -7 to 1 Pa. Measuring range of absolute pressure from 1 x 10 -4 to 1 x 10 -1 Pa. The VM-C01 contains: - built-in double inverse-magnetron magnetron manometric transducer with cold cathode Vacuum gauge VM-C01 is used in automated vacuum systems for industrial, experimental and educational purposes. Magnetic discharge digital vacuum gauge VM-C01 - Registered in the State Register of Measuring Instruments (SI State Register) Registration No. 84678-22. Verification is carried out by FBU "Rostest-Moscow" User manual available on request: LCMK.239.00.00.00.000-04 VMC-01 (type 04 KF25 = 40 mm flange).

Technical Specifications

Data transfer protocol	ModBus RTU
Power supply voltage	16...32 V
Type of pressure sensor	Double inverse magnetodischarge diode
Connection type	KF-25
Overall dimensions (diameter × length), not more than	70x133 mm
Weight, not more	0.45 kg
Execution	04 type KF-25 TU 26.51.5-001-17555009-2019 GOST 15150-69 GOST 15543-70 at normal values of climatic factors of external environment - UHL for product placement category 4.2
Dustproof	Yes - The case is made of aluminium alloy, has anticorrosive coating of UHL4 version, meets the standards IP 64 according to GOST 14254-2015, IP 21 according to GOST 14254-2015, III class of personnel protection against electric shock according to GOST 12.
Warranty period	1 a
Climatic designs	GOST 15150-69; GOST 15543-70 at normal values of climatic factors of the environment - UHL for product placement category 4.2
Operating pressure range	1 x 10 -7 to 1 x 10 -1
Pressure measuring range	1 x 10 -4 to 1 x 10 -1
Power consumption, max.	9,0 W
Rated supply voltage	24 V
Interface	RS-485

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
