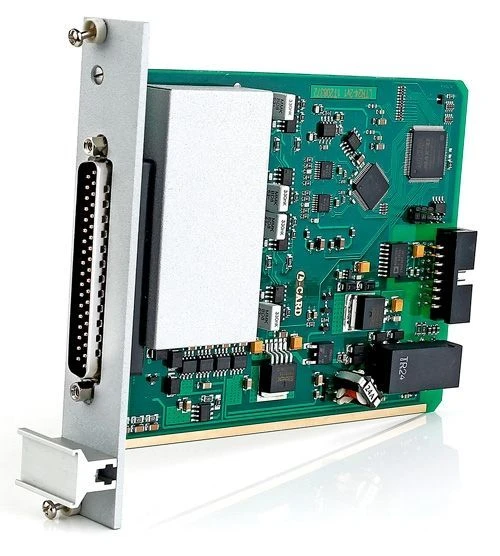

LTR24-2 measuring module

Electrical Measurement Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

LTR24-1 measuring module

Description

Measuring modules LTR24-2 are designed for DC and AC voltage measurements in one or several measuring channels, as well as for measuring the phase angle between signals in different channels. They are a part of LTR measuring installations. The LTR24 are designed for applications requiring high quality AC signal digitisation with high spectral fidelity of conversion, wide dynamic range and high signal-to-noise ratio. The LTR24 also offers high accuracy in DC current measurement. The LTR24-2 modification has the option of direct connection to ICP sensor inputs. Each input of the module can be independently software-configured to be permanently connected to a differential input or to an ICP sensor input.

Specifications

DC input electrical resistance in "Differential input" mode 10^7 ohm

Tolerance limits of absolute error of phase angle measurements ±0,2

Phase angle measurement range 0 to 360

Limits of permissible relative basic error of measurements of RMS value of AC voltage in p from ±0.1 %

Measuring range of RMS value of AC voltage in "ICP sensor" mode 10^-3 to 5 V

Limits of permissible relative basic error of measurements of RMS value of AC voltage in p from ±0.05 %

Frequency range of RMS value of AC voltage measured in "Differential input" mode 10 to 50*10^3

Measurement range of RMS value of AC voltage in "Differential input" mode 10^-3 to 7 V

Limits of permissible reduced basic error of DC voltage measurements ±0,05 %

Measuring range of DC voltage in "Differential input" mode -10 to +10 V

Number of measuring channels 4 pc

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
