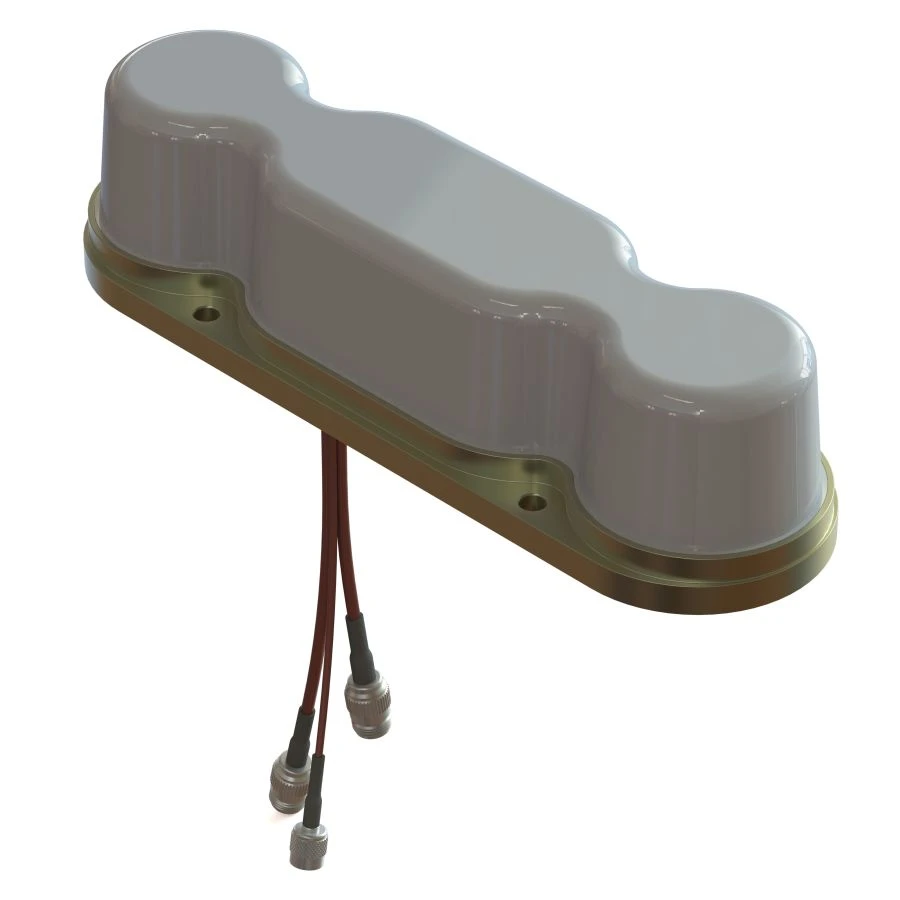

Locomotive antenna AL3/800-3400/MIMO/N

Antenna Equipment & Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Antenna locomotive AL3/800-3400/MIMO/N CD ALVR.464651.018 is manufactured in accordance with the requirements of technical specifications 65 7700-018-62837180-12 TU, designed to work on mobile objects of railway transport together with locomotive (transportable) radios for transmission of speech and/or data, radio facilities of traffic safety systems on railway transport and in public networks in LTE/TETRA/GSM-R/GSM900/GSM1800/UMTS/WiMAX/Wi-Fi standards. Structurally, the antenna consists of two asymmetric vertical vibrators c active antenna systems GNSS (GLONASS) to ensure operation with radio facilities that support MIMO technology.

Technical Specifications

Connector	Two N-type sockets for two metre and decimetre antennas and TNC-type plug for GLONASS/GPS
Polarization	Vertical
Weight	2.6 kg
Power supply voltage	13.2 V
Operating wind speed	432
Power consumption	0.12 W
Equipment	Antenna, passport, packaging
Antenna gain with respect to isotropic radiator, dBi, not less than	In frequency ranges, MHz: 760,0-800,0 - 6,4; 800,0-990,0 - 6,3; 990,0-1350,0 - 6,5; 1350,0-1600,0 - 7,2; 1600,0-2100,0 - 8,2; 2100,0-2600,0 - 9,0; 2600,0-3200,0 - 8,5; 3200,0-3400,0 - 8,0
Horizontal directional pattern	Close to circular with deviation not more than 3 dB
Wave impedance	SBVVBG ohm
Operating conditions	The antenna is designed for operation on all mobile objects of railway transportation in train radio communication networks in the following conditions: - ambient temperature from minus 50 C to plus 60 C; - relative humidity 93 % at temperature plus 2
VSWR	Not more than 1,7 in frequency ranges 800,0-990,0; 1350,0-3200,0 and not more than 2,0 in frequency range 3200,0-3400,0 MHz
Operating frequency range	760...3400
Degree of protection in operating position	IP66 according to GOST 14254-2015
Dimensions	(WxDxW) 87x155x90 mm
Gain factor of the built-in LFM	27...29
Maximum power	SBVVBG W
Power supply voltage of the built-in MSHU	3.3...13.2 V
Current consumption of the built-in MSI	0.036 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
