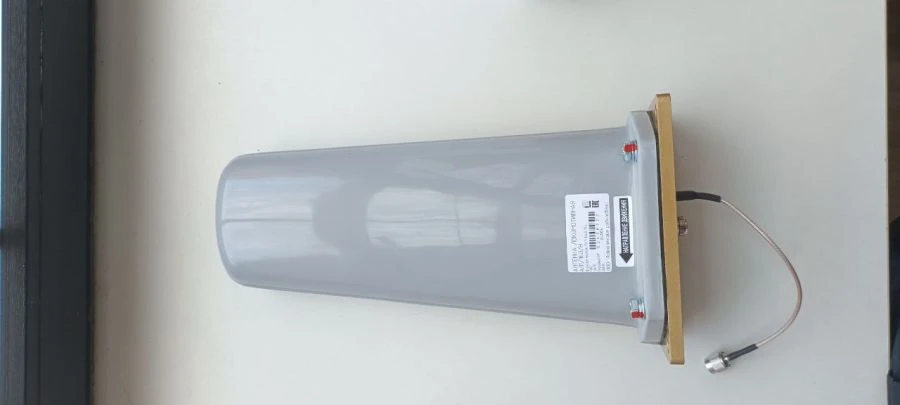

Locomotive antenna AL1/160/H

Antenna Equipment & Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Antenna locomotive AL1/160/H CD ALVR.464641.007 is manufactured in accordance with the requirements of technical specifications 65 7700 5-001-62837180-11 TU. It is intended for operation as a part of locomotive radio stations of railway radio communication and radio facilities of railway traffic safety systems in the metre wave range. It has an antenna and MSHU for reception of satellite signals GLONASS/GPS.

Technical Specifications

Polarization	Vertical
Weight	1.9 kg
Power supply voltage	13.2 V
Operating wind speed	432
Connector	N-type socket for meter antenna and TNC-type plug for GLONASS/GPS
Power consumption	0.12 W
Equipment	Antenna, passport, packaging
Antenna gain	At least 0 dB with respect to the quarter-wave radiator in the operating frequency band.
Gain factor of the built-in LFM	27...29
Current consumption of the built-in MSI	0.036 A
Power supply voltage of the built-in MSHU	3.3...13.2 V
Maximum power	100 W
Dimensions	(WxDxW) 370x185x110 mm
Degree of protection in operating position	IP66 according to GOST 14254-2015
Operating frequency range	151.7...156
VSWR	Not more than 1.5
Operating conditions	The antenna is designed for operation on all mobile objects of railway transportation in train radio communication networks in the following conditions: - ambient temperature from minus 50 C to plus 60 C; - relative humidity 93 % at temperature plus 2
Wave impedance	SBVVBG ohm
Horizontal directional pattern	Close to circular with deviation not more than 3 dB

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
