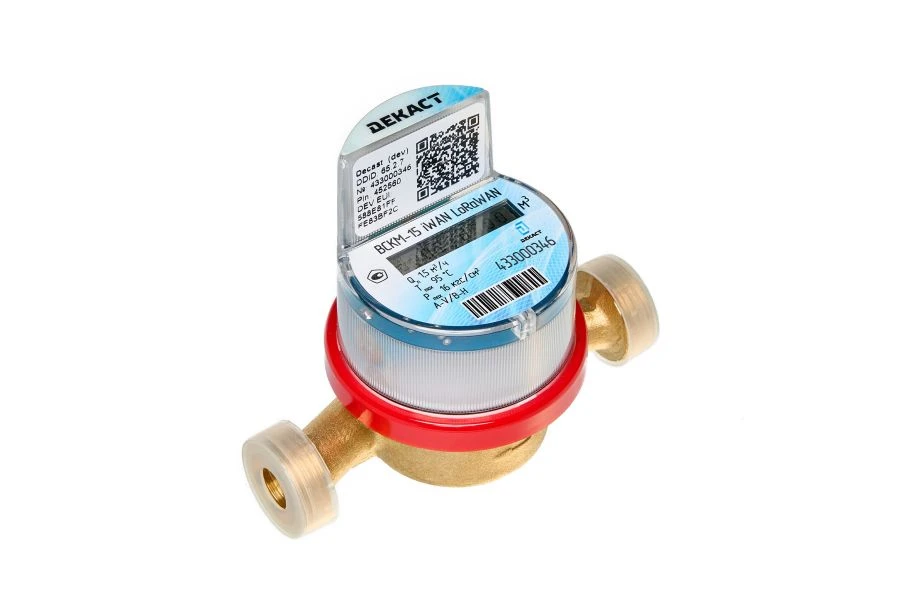

Winged cold and hot water meter Decast VSKM-15 iWAN LoRaWAN 110 mm

Water and Liquid Meters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The meters are designed to measure the volume of drinking water according to SanPiN 2.1.4.1074-01 in residential buildings, as well as in industrial buildings during accounting operations. Wireless data transfer protocol LoRaWAN. Mounting length 110 mm. The principle of operation of the meter consists in measuring the number of revolutions of the sensitive element (impeller) rotating under the action of the flow of flowing water. The number of revolutions of the sensitive element is proportional to the volume of water flowing through the meter. Structurally, the meters consist of a body (flowing part) and counting mechanism (electronic unit with liquid crystal display). The verification procedure is MP 208-001-2023.

Specifications

Maximum water flow Qmax 3

Nominal (operating) water flow rate Qn 1.5

Transient water flow Qt (metrological class A) Qt 0.15

Minimum water flow rate (metrological class A) Qmin 0.06

Type of product according to PP RF 616 Other tools and instruments for measurement, inspection and testing

Diameter of nominal passage, DN 15 mm

Sensitivity threshold (max.) 0.01

Pressure loss at Qmax 0.1 MPa

Maximum water pressure 1.6 MPa

Water temperature range 5...95 °C

Mounting length 110 mm

Capacity of the counting mechanism 99999.9999

Discreteness of the control scale of the indicator device 0.0001

Tolerance limits of relative error in the range Qmin-Qt, % +5

Tolerance limits of relative error in the range Qt (inclusive) - Qmax, % +2

Inspection interval 6 a

Warranty service period 72

Guaranteed shelf life (from the production date) B1/B8 2100/900 MHz

Minimum flow rate (metrological class B) Qmin 0.03

Transient water flow rate Qt (metrological class B) 0.12

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
