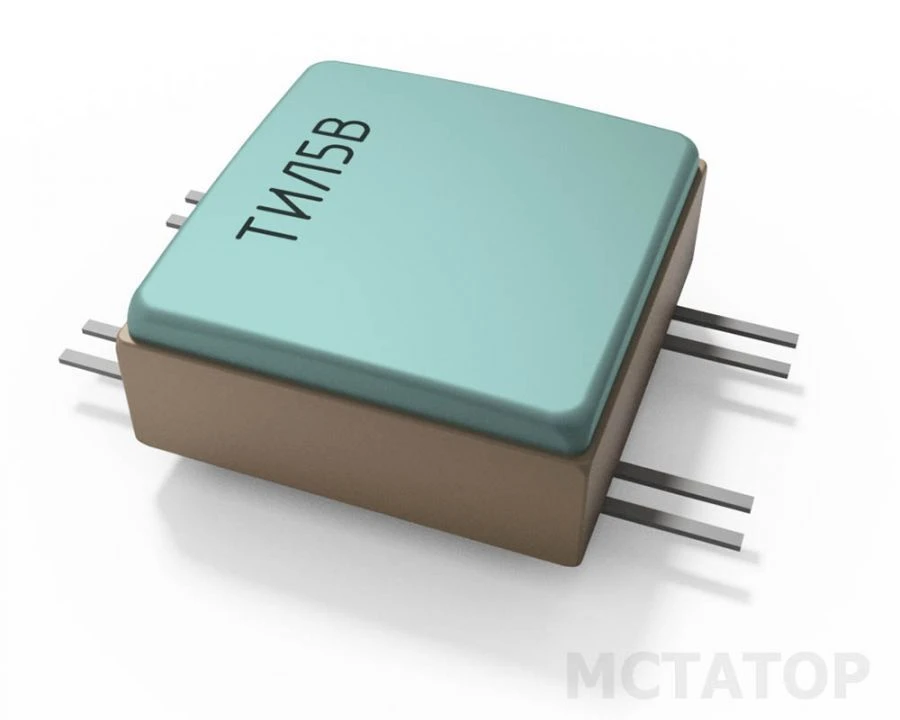

Linear Impulse Transformers TIL5V for Galvanic Isolation and Signal Matching

Electric Transformers

Manufacturer:PJSC "MSTATOR"

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Transformers pulse linear type TIL5V with high impedance value of linear winding are designed for galvanic isolation and coordination of subscribers with multiplex channel of information exchange (GOST R 52070, GOST 26765.52, MIL-STD-1553B). Quality category "VP" and "OS".

Specifications

Product of pulse duration by input pulse voltage

50 (×10^-6)

Decay of the flat part of the pulse at the output, not more than

10 %

Resistance of linear (pins 8 and 5) winding (impedance) at F=1 MHz, not less than

7 (×10^3) ohm

Insulation resistance, (voltage 100V), not less than

500 (×10^6) ohm

Electrical insulation strength: DC voltage

250 V

Symmetry of generator windings

2 %

Primary winding inductance (leads 1-2), not less than

7,5 (×10^-3)

Number of transformer windings

6 pcs

Transformation ratio

1.0;0.64;0.64;0.26;0.26
