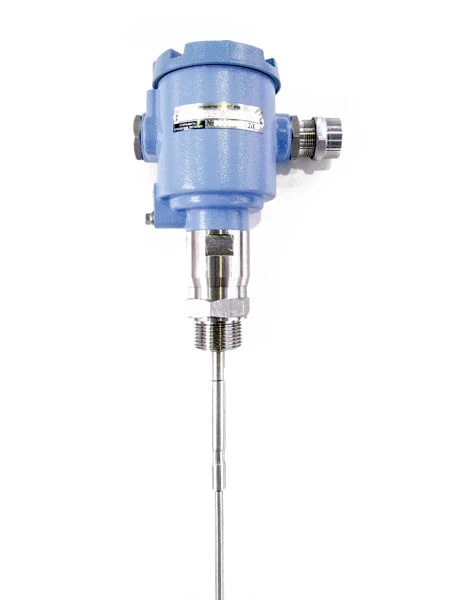

Level gauges microwave SENS UMV according to TU SENS.407629.009TU

Level Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Microwave level gauge SENS UMV is designed for continuous measurement of the level (including the interface) of liquid media with dielectric constant not less than 1.6 in tanks and reservoirs and its conversion into a unified current signal 4-20 mA and (or) digital coded signal based on HART protocol during accounting and technological operations. The measurement accuracy of SENS UMV level transmitter does not depend on changes in chemical and physical-mechanical parameters of the medium: condensate formation, vapours, pressure and temperature differences, changes in electrical conductivity or dielectric properties. Due to the whole set of unique operational characteristics it can be used in modern systems of automated control systems, DCS, PAZ at the objects of chemical, petrochemical, pharmaceutical and food industries, in mechanical engineering and shipbuilding.

Technical Specifications

Degree of protection of the outer shell	IP66
Service life	15 a
Power supply voltage	NZ-150-14,5 V
Parameters of controlled medium (working pressure)	Not more than 32 MPa
Parameters of controlled environment (temperature)	-196...450 °C
Waveguide length, mm	300 to 6000 (rod and coaxial); 300 to 15000 (rope).
Type of waveguide	Rod; Cable; Coaxial; Coaxial prefabricated
Measured parameters of media	Level, interface level of two-phase liquid

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
