Liquid level switch SZHU-1-PV

Level Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

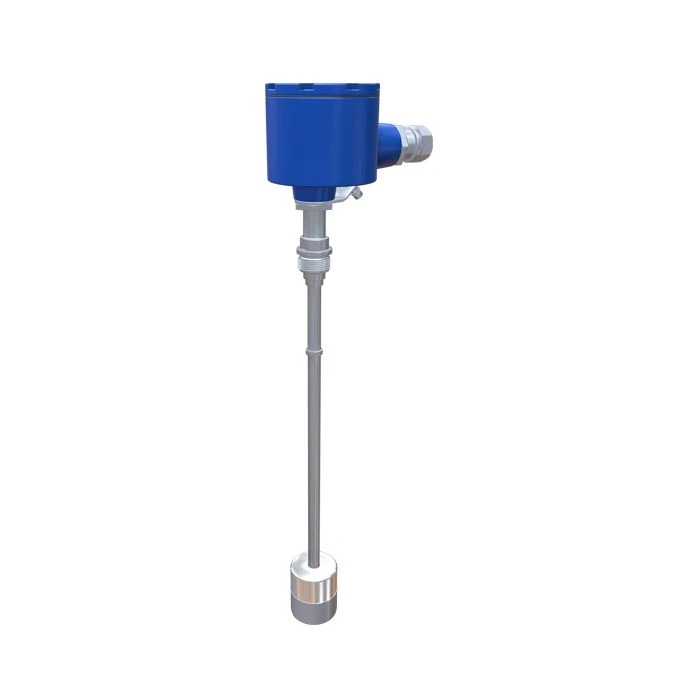

The liquid level analyser SZHU-1-PV is a vertical sensing element. The submersible part of the device can be manufactured up to 4 metres long. The modification can have one or two control points. The key feature is that the signalling device does not need to be connected to the power supply. The detection of the limit level occurs by closing the reed switch when the float with integrated magnet reaches the set level. As the device can be equipped with a threaded connection for process connection, it is possible to remove the lower float stopper to remove it from the boom. After successful installation of the device, the float is put back on the rod and secured with the lower stopper. This feature is provided for ease of installation on site.

Technical Specifications

Service life	B1/B8 2100/900 MHz a
Degree of protection of the outer shell	IP67
Operating medium temperature	-20 to +75 °C
Ambient air temperature range	-55 to +75 °C
Number of control points	1...2 pc
Controlled process pressure	Up to 0,63 MPa
Sensing element	Float
Stand height	40 to 200 mm
Length of immersion part	From 100 to 4000 mm
Sealing unit	Flange connection; Socket connection, external thread; Coupling nut, internal thread; Special connection (by prior agreement).
Output signal	Relay, dry contact type SPDT
Voltage switched by the output key of the signaling device	Up to 127 V, with current not exceeding 100 mA V
Type of explosion protection	Without explosion protection; 1 Exd llC T6 Gb X (flameproof enclosure); 0 Ex ia llC T6 Ga X (intrinsically safe circuit)
Material of the signaling device in contact with the working medium	Stainless steel 12?18?10? (or analogue)
Housing material	Aluminium alloy (standard)
Model	Liquid level switch SZHU-1-PV

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
