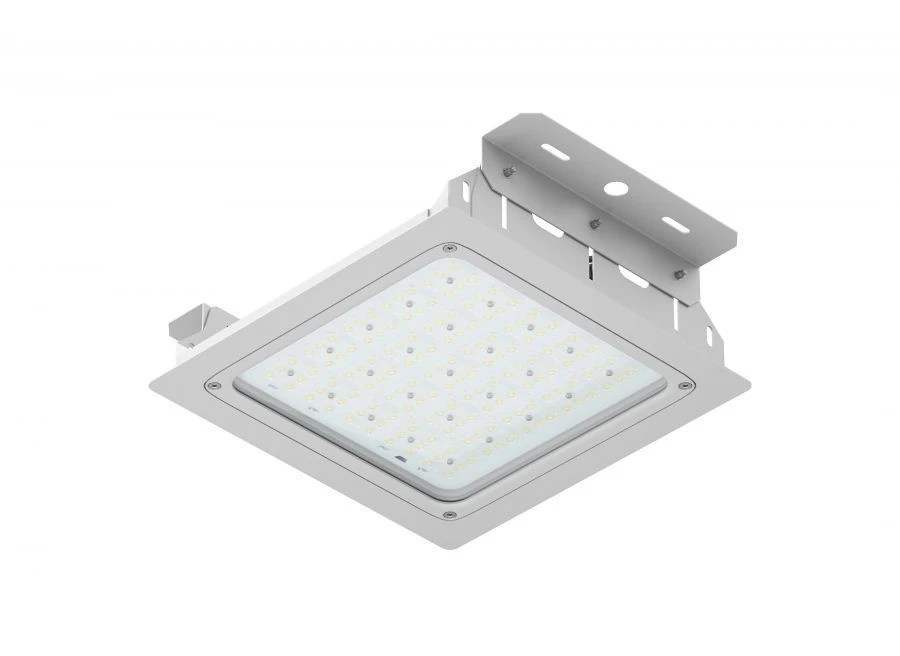

LED luminaire INSEL LB/R LED G3 200W

LED Ceiling & Wall Lights

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Energy efficient luminaire with high IP degree for installation in niches, including under the canopy of petrol stations. Designed for operation in AC 100-305 V, 50-60 Hz, in DC 140-420 V. It is a replacement for luminaires of GVP, RVP, ZhVP type.

Specifications

Form square

Correlated color temperature, max 5000 K

Type of luminaire Built-in

Power 200...220 W

Luminous flux 30600...34800 lm

Dimmable luminaire no

Works in a smart home system no

Remote control no

Availability of HCL concept execution with TW technology no

Power factor 0.96

Color rendering index 70

Protection class against electric current I

Ripple factor 2 %

Net weight 8.4 kg

Luminaire length 390 mm

Luminaire width 390 mm

Luminaire height 112 mm

Explosion-proof no

Diffuser material clear tempered glass

Luminaire body material Aluminum

Rated supply voltage 230 V

Lamp type LED

Climatic execution (according to GOST 15150-69) UHL1

Upper operating temperature value 40 °C

Lower operating temperature value -40 °C

Type of supply current AC/DC

Scattering angle A30; D15; D30; D60; D90; D120; D130

The first characteristic digit of the degree of protection designation, not less than 6

Second characteristic digit of the degree of protection designation, not less than 6

IK code 8

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
