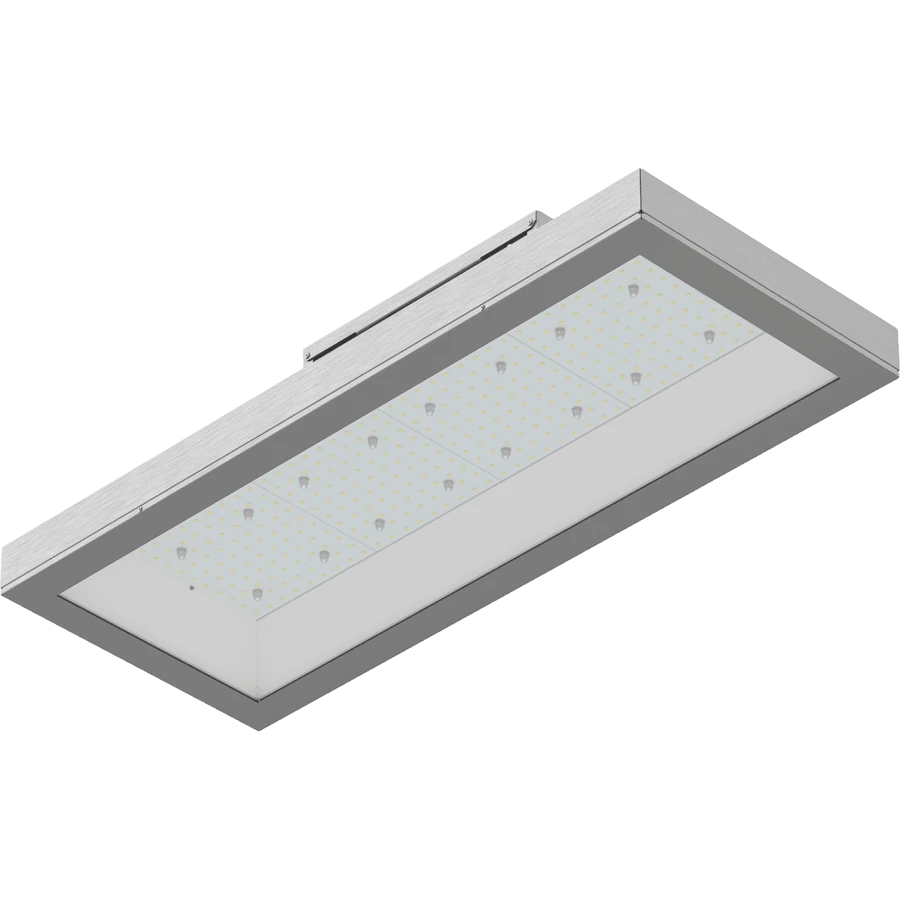

LED luminaire INOX LED 80 (GL/SS)

LED Ceiling & Wall Lights

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Series of luminaires for heavy duty. Designed for use at enterprises of chemical, defence and food industries. It is possible to use in fire hazardous areas. INOX LED luminaires are characterised by convenient mounting due to the attachment of the plate with clusters and power supply to the body with the help of magnets. It is possible to produce various modifications with overvoltage protection unit (OVP), emergency unit (EM).

Specifications

Scattering angle D120

Mounts included Armoured glass

Mounting type On supporting surface/suspended

Type of supply current AC/DC

Climatic execution (according to GOST 15150-69) UHL1

Rated supply voltage 230 V

IK code IK08/6.5 J

Luminous flux ripple factor <1%

Overall color rendering index >80

Correlated color temperature 3000...5000 K

Lower operating temperature value -40 °C

Upper operating temperature value 40 °C

Form Rectangular

Diffuser material Glass

Housing material stainless steel

Degree of protection (IP) IP65/IP67

Power factor > 0,97

Protection class against electric shock I; II

Height 205 mm

Width 307 mm

Power consumption 80 W

Luminous flux 10000 lm

Gross weight 8 kg

Length 757 mm

Net weight 7.4 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
