Available for Import

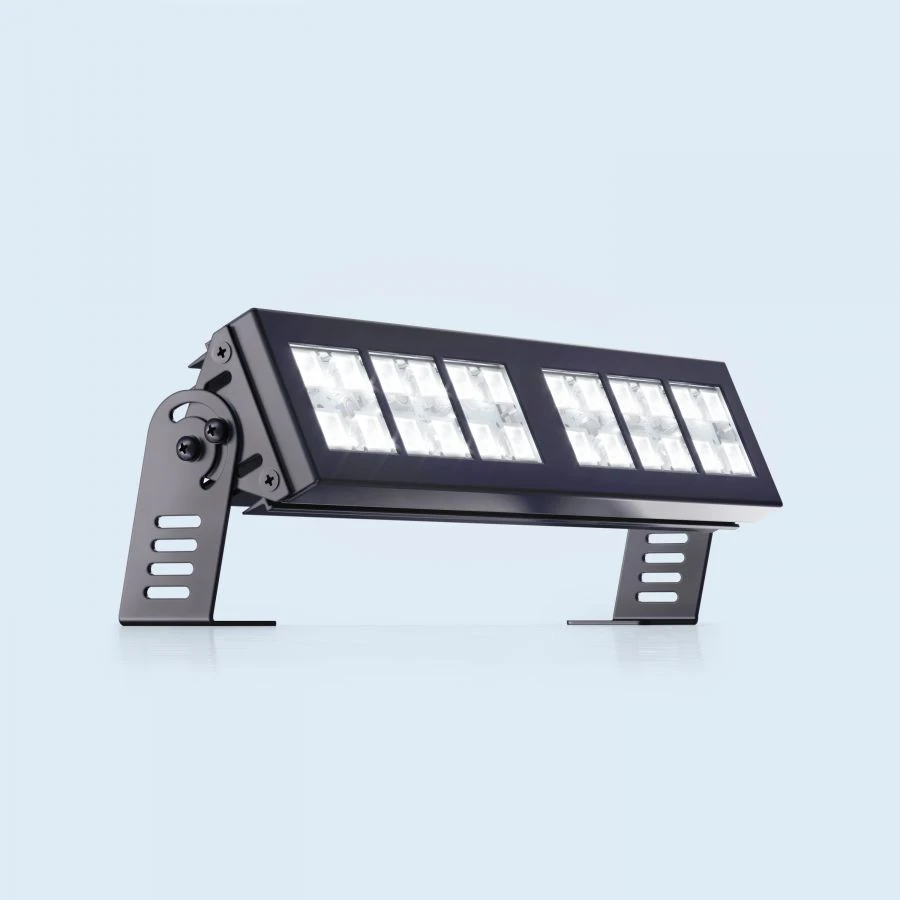

LED Light LV-HARD x24 for 12V and 24V Applications - Ideal for Mobile and Stationary Uses

LED Lighting Fixtures

Manufacturer: LEDVIZOR LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for 12 and 24 volt mains operation. Optimised for mobile technology and stationary applications: on sites without fixed power grids, in rooms with specific operating conditions (e.g. high humidity), in emergency lighting systems. Optionally for the luminaire is available installation of a non-standard grille, which increases the protection of the luminaire from mechanical damage.

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings other than those included in other groupings

Color rendering index (CRI), not less than

Degree of protection (IP)

IP67

Type by installation location

stationary, outdoor, on a bracket

Climatic version

UHL1

Pulsation factor

5 %

Luminous flux, lm

6300...6900 lm

Upper operating temperature value

45 °C

Power consumption

60 W

Housing material

aluminum, polymer coated steel

Light output, lm/W, not less than

125

Height

56 mm

Width

74 mm

Length

351 mm

Net weight

2.1 kg

Lower operating temperature value

-40 °C

Protection class against electric current

III

Correlating color temperature (CCT)

2700...6500 K

Power factor

0.92

Rated supply voltage

10...30 V

Type of supply current

permanent

Designated service life

B1/B8 2100/900 MHz year

Warranty period of operation

5 year

Type of conditional light intensity curve in the equatorial plane

circular/axial

Type of light intensity curve in characteristic meridional planes

K/Y/D/L/M

Light distribution class

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
