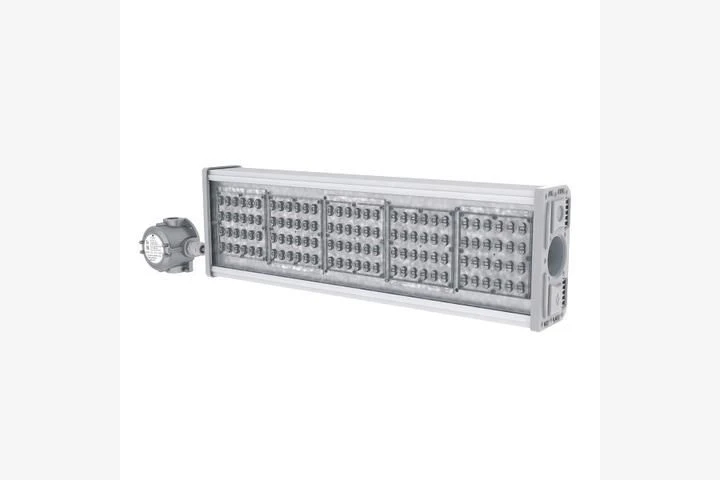

LED Explosion-Proof Console Light SCS-A,B,C-220-006-01-N,T-UHL1-Ex for Hazardous Area Illumination

LED Lighting Fixtures

Manufacturer: PROTON OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Console LED luminaire in explosion-proof version SKS-A,B,B-220-005-01-N,T-UHL1-Ex Console LED luminaire in explosion-proof version SKS-A,B,V-220-005-N,T-UHL1-Ex Console LED luminaire in explosion-proof version SKS-A,B,V-220-006-N,T-UHL1-Ex

Description

The console LED luminaire in explosion-proof version of white luminescence colour is designed to work in AC network for outdoor and indoor lighting of objects in hazardous areas of class 2 according to GOST IEC 60079-10-1, areas dangerous for ignition of combustible dust according to GOST IEC 61241-1-2. The luminaire has a housing made of anodised aluminium profile with protective glass made of impact-resistant, optical, UV-protected polycarbonate.

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings, other than those included in other groupings, intended for use with LED lamps and other LED light sources

Sealing gasket

Silicone

diffuser

Polycarbonate

Case

Anodized aluminum profile with plastic plugs

Nominal frequency

SBVVBG

AC supply voltage

176...264 V

Ambient temperature

-40...60 °C

Explosion protection version

2 Ex nR IIC T5 Gc X, Ex tc IIIC T95C DcX

Height

110 mm

Width

230 mm

Length

1000 mm

Power consumption

180 W

Degree of protection

IP66

Luminous flux

21600 lm

Weight

12.9 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
